Product Key Takeaway & AI Summary

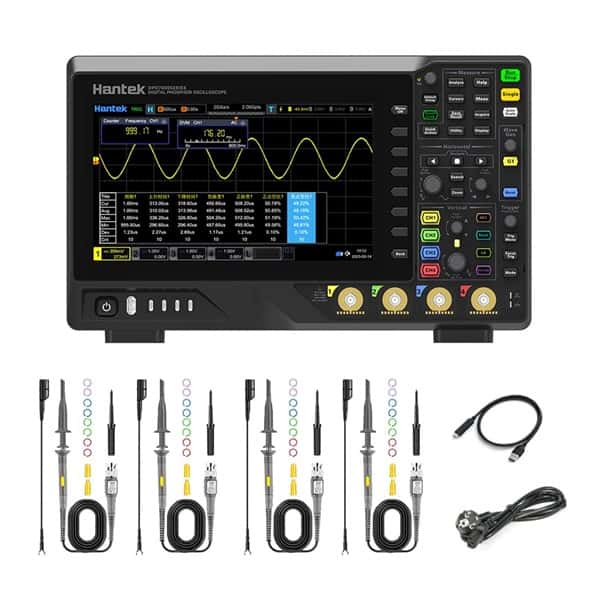

The Hantek DPO7354U Digital Storage Oscilloscope- 4CH 350MHz is a professional-grade oscilloscope product manufactured by Hantek. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Technical Specifications Analog Bandwidth (-3 dB)350MHz Rise Time at BNC (typical) ≤1 ns Analog Channel 4 Max. Sample Rate 2GSa/s for single channels 1GSa/s for half or all channels Max. Memory Dept 2Gpts for single channel,1Gpts for half channels 500 Mpts for three or all channels Display Type: 10.1 inch capacitive multitouch screen Display Resolution :1024 horizontal by 600 vertical pixels Waveform Update Rate (Typical): Up to 500,000 wfms/s ( at 25ns, single channel, auto memory depth) External Trigger :1 Waveform Color Persistence: Standard Counter: 6-digit frequency counter + totalizer Integrated Digital Voltmeter: Standard Waveform Recorder: Standard Search and Navigation: Standard (supporting table display) Hardware Mask Test: Standard Built-in Waveform Generator: 1CH, 25MHz FFT: Standard MATH: Displays 4 functions simultaneously Connectivity: USB Host, USB Device (Type C), LAN Warranty 2 Years Application Electronics design, testing, research, and analysis. It consolidates multiple functions into a single device, making it a comprehensive tool for engineers and hobbyists.
Frequently Asked Questions
What is Hantek DPO7354U Digital Storage Oscilloscope- 4CH 350MHz?
Technical Specifications Analog Bandwidth (-3 dB)350MHz Rise Time at BNC (typical) ≤1 ns Analog Channel 4 Max. Sample Rate 2GSa/s for single channels 1GSa/s for half or all channels Max. Memory Dept 2Gpts for single channel,1Gpts for half channels 500 Mpts for three or all channels Display Type: 10.1 inch capacitive multitouch screen Display Resolution :1024 horizontal by 600 vertical pixels Waveform Update Rate (Typical): Up to 500,000 wfms/s ( at 25ns, single channel, auto memory depth) External Trigger :1 Waveform Color Persistence: Standard Counter: 6-digit frequency counter + totalizer Integrated Digital Voltmeter: Standard Waveform Recorder: Standard Search and Navigation: Standard (supporting table display) Hardware Mask Test: Standard Built-in Waveform Generator: 1CH, 25MHz FFT: Standard MATH: Displays 4 functions simultaneously Connectivity: USB Host, USB Device (Type C), LAN Warranty 2 Years Application Electronics design, testing, research, and analysis. It consolidates multiple functions into a single device, making it a comprehensive tool for engineers and hobbyists.
Does this product come with a warranty?
Yes, the Hantek DPO7354U Digital Storage Oscilloscope- 4CH 350MHz is backed by a 2 Years warranty, covering structural defects and manufacturer failures during standard operations.
How do I choose the correct specifications or size?
Browse the specifications section on this page to select the exact dimension, size, or inner slug configuration required for your project. You can submit quotes for bulk volumes directly to verified suppliers.
