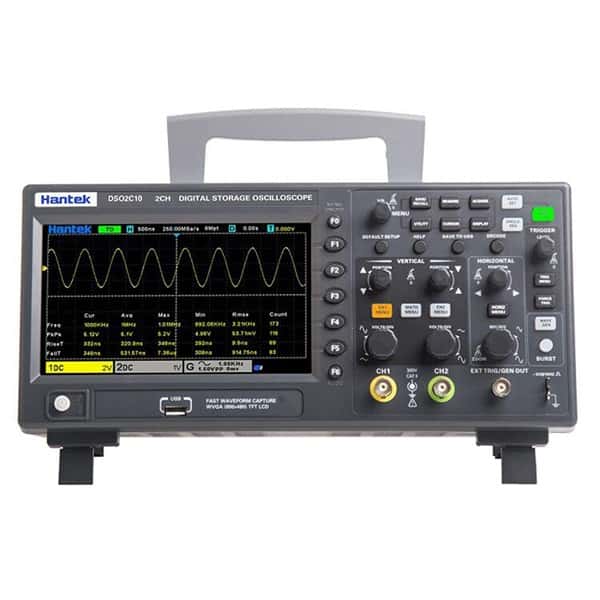

Hantek DSO2C10 Oscilloscope, 100 Mhz 2 Channel- Promo 2 Probes

Product Key Takeaway & AI Summary

The Hantek DSO2C10 Oscilloscope, 100 Mhz 2 Channel- Promo 2 Probes is a professional-grade oscilloscope product manufactured by Hantek. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Technical Specifications Model DSO2C10 Bandwidth 100MHz Oscilloscope channels 2CH Oscilloscope Sample rate 1GSa/s (single channel) 500MSa/s (two channels) Acquisition Normal Sample data Peak-to-peak value Display high frequency and random burr Average Average waveform, times: 4, 8, 16, 32, 64, 128 High resolution Up to 12bit Input Input coupling DC, AC, GND Input impedance 1MΩ±2% ‖20pF±3pF. Probe attenuation factor 1X, 10X, 100X, 1000X Voltage rating 300V CAT II Maximum input voltage 300VRMS (10X) Horizontal Waveform interpolation (sin x)/x Maximum record length Single channel maximum 8M Two channels maximum 4M Horizontal scale range 2ns/div~100s/div 1, 2, 5 step by step Time base mode Y-T, X-Y, Roll Zero offset ±0.5 div×minimum time base gear Sample Rate and Delay Time Accuracy ±25ppm Sample Rate and Delay Time Accuracy ±50ppm（at any interval greater than 1ms） Vertical Rising time in BNC position (typical) 3.5ns Vertical resolution 8 bits resolution, each channel samples simultaneously Vertical sensitivity 2mV/div to 10V/div Offset range ≥ 200mV/div, ±1V; ＜200mV/div ±50V Mathematical operation +, -, ×, ÷, FFT FFT Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop Bandwidth Limit 20MHz Bass response（-3db） In BNC position ≤ 10Hz Vertical gain accuracy In ''normal'‘ or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3% In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% Warranty 1 Year Application It is a useful commissioning instrument for various fields such as communication, aerospace, national defence, embedded systems, computers, research and education

Frequently Asked Questions

What is Hantek DSO2C10 Oscilloscope, 100 Mhz 2 Channel- Promo 2 Probes?

Technical Specifications Model DSO2C10 Bandwidth 100MHz Oscilloscope channels 2CH Oscilloscope Sample rate 1GSa/s (single channel) 500MSa/s (two channels) Acquisition Normal Sample data Peak-to-peak value Display high frequency and random burr Average Average waveform, times: 4, 8, 16, 32, 64, 128 High resolution Up to 12bit Input Input coupling DC, AC, GND Input impedance 1MΩ±2% ‖20pF±3pF. Probe attenuation factor 1X, 10X, 100X, 1000X Voltage rating 300V CAT II Maximum input voltage 300VRMS (10X) Horizontal Waveform interpolation (sin x)/x Maximum record length Single channel maximum 8M Two channels maximum 4M Horizontal scale range 2ns/div~100s/div 1, 2, 5 step by step Time base mode Y-T, X-Y, Roll Zero offset ±0.5 div×minimum time base gear Sample Rate and Delay Time Accuracy ±25ppm Sample Rate and Delay Time Accuracy ±50ppm（at any interval greater than 1ms） Vertical Rising time in BNC position (typical) 3.5ns Vertical resolution 8 bits resolution, each channel samples simultaneously Vertical sensitivity 2mV/div to 10V/div Offset range ≥ 200mV/div, ±1V; ＜200mV/div ±50V Mathematical operation +, -, ×, ÷, FFT FFT Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop Bandwidth Limit 20MHz Bass response（-3db） In BNC position ≤ 10Hz Vertical gain accuracy In ''normal'‘ or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3% In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% Warranty 1 Year Application It is a useful commissioning instrument for various fields such as communication, aerospace, national defence, embedded systems, computers, research and education

Does this product come with a warranty?

Yes, the Hantek DSO2C10 Oscilloscope, 100 Mhz 2 Channel- Promo 2 Probes is backed by a 1 Year warranty, covering structural defects and manufacturer failures during standard operations.

How do I choose the correct specifications or size?

Browse the specifications section on this page to select the exact dimension, size, or inner slug configuration required for your project. You can submit quotes for bulk volumes directly to verified suppliers.
