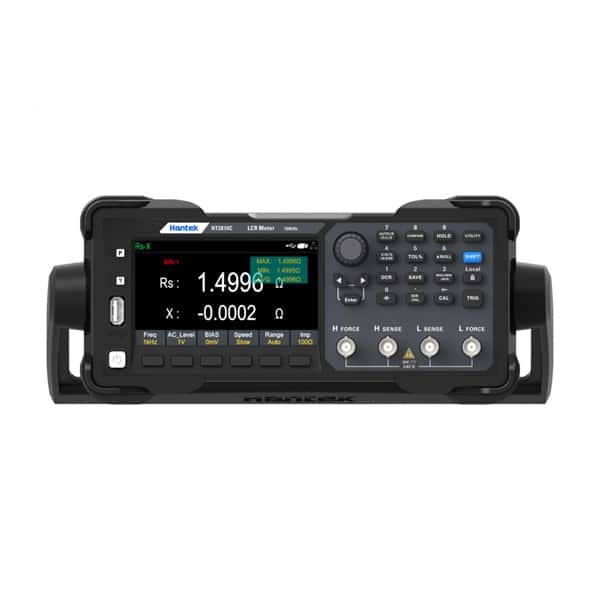

Hantek HT2810C Benchtop LCR Meter- 100KHz (Component Testing)

Product Key Takeaway & AI Summary

The Hantek HT2810C Benchtop LCR Meter- 100KHz is a professional-grade component testing product manufactured by Hantek. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Technical Specifications Model HT2810C Test signal frequency 100Hz-100kHz continuously adjustable，1Hz steps Display digits Main Parameter: 5 digits, Second Parameter: 5 digits Test Parameter Main：R/C/ L/Z；Secondary：X/D/Q/θ/ESR Parameter display range R 0.0001Ω - 99.99MΩ C 0.001pF - 9999μF L 0.001μH - 9999H Basic accuracy 0.10% Display speed Slow: 2 times/second；Middle: 5 times/second; Fast: 10 times/second; AC test signal level (Vrms) 100 - 2000mV continuously adjustable, 1mV steps DC bias voltage 0 - 1500mV adjustable, 1mV steps Range mode Auto, Optional special range Signal source output impedance Selectable 30Ω, 100Ω Correction Open, Short Equivalent circuit Serial, Parallel Trigger mode Auto, Bus, EXT Save/Recall Setting parameters can be saved internally with 6 sets of positions, which can be recalled by user. DCR display range 0.0001Ω ~ 99.99MΩ Comparator function Tolerance range：-100% ~ +100%; 5 Bins (BIN:1, BIN:2, BIN:3, BIN:OUT, BIN:AUX) Interface USB HOST, USB DEVICE, LAN, RS232/485, Handler Language Chinese, English LCD display Backlight brightness adjustable Other Electrolytic Capacitor Test Mode，Keyboard Lock Function Operating Environment 0℃-40℃, 15%-85%RH. Dimensions Including the sheath: 308*231.5*109.5mm（L*W*H） Not including the sheath: 263.6*213.6*88.6mm（L*W*H） Warranty 3 year Application Check resistors, capacitors, inductors, and other passive components.

Frequently Asked Questions

What is Hantek HT2810C Benchtop LCR Meter- 100KHz?

Technical Specifications Model HT2810C Test signal frequency 100Hz-100kHz continuously adjustable，1Hz steps Display digits Main Parameter: 5 digits, Second Parameter: 5 digits Test Parameter Main：R/C/ L/Z；Secondary：X/D/Q/θ/ESR Parameter display range R 0.0001Ω - 99.99MΩ C 0.001pF - 9999μF L 0.001μH - 9999H Basic accuracy 0.10% Display speed Slow: 2 times/second；Middle: 5 times/second; Fast: 10 times/second; AC test signal level (Vrms) 100 - 2000mV continuously adjustable, 1mV steps DC bias voltage 0 - 1500mV adjustable, 1mV steps Range mode Auto, Optional special range Signal source output impedance Selectable 30Ω, 100Ω Correction Open, Short Equivalent circuit Serial, Parallel Trigger mode Auto, Bus, EXT Save/Recall Setting parameters can be saved internally with 6 sets of positions, which can be recalled by user. DCR display range 0.0001Ω ~ 99.99MΩ Comparator function Tolerance range：-100% ~ +100%; 5 Bins (BIN:1, BIN:2, BIN:3, BIN:OUT, BIN:AUX) Interface USB HOST, USB DEVICE, LAN, RS232/485, Handler Language Chinese, English LCD display Backlight brightness adjustable Other Electrolytic Capacitor Test Mode，Keyboard Lock Function Operating Environment 0℃-40℃, 15%-85%RH. Dimensions Including the sheath: 308*231.5*109.5mm（L*W*H） Not including the sheath: 263.6*213.6*88.6mm（L*W*H） Warranty 3 year Application Check resistors, capacitors, inductors, and other passive components.

Does this product come with a warranty?

Yes, the Hantek HT2810C Benchtop LCR Meter- 100KHz is backed by a 3 year warranty, covering structural defects and manufacturer failures during standard operations.

How do I choose the correct specifications or size?

Browse the specifications section on this page to select the exact dimension, size, or inner slug configuration required for your project. You can submit quotes for bulk volumes directly to verified suppliers.
