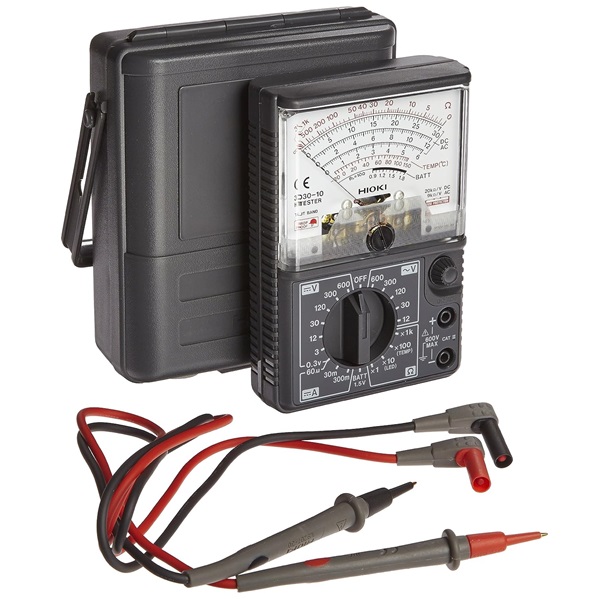

HIOKI 3030-10 Hi Tester by HIOKI (SKU: PRD-1768587090073-hioki-3030-10-hi-tes) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| DC voltage range | 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) |
| Accuracy | ±2.5 % f.s. Max. rated voltage: 600 V |
| AC voltage range 12 V (9 kΩ/V) Accuracy | ±4 % f.s. |
| 30/120/300/600 V (9 kΩ/V) Accuracy | ±2.5 % f.s. |
| Average rectifier effective value, Max. rated voltage | 600 V |
| DC current range | 60 µA/30 m/300 mA (300 mV internal voltage drop) |
| Accuracy | ±3 % f.s. |
| Resistance range | 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k |
| Accuracy | ±3 % of scale length |
| Battery check 0.9 to 1.8 V, load resistance 10 Ω, Accuracy | ±6 % f.s. |
| Temperature scale Note | The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers. |
| Power supply for resistance measurement range, | R6P (AA) ×2 batteries |
| Dimensions and mass | 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz) |
| Included accessories Test Lead | L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1 |
| Detail | 3 years |
DC voltage range 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V AC voltage range 12 V (9 kΩ/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s. Average rectifier effective value, Max. rated voltage:...
