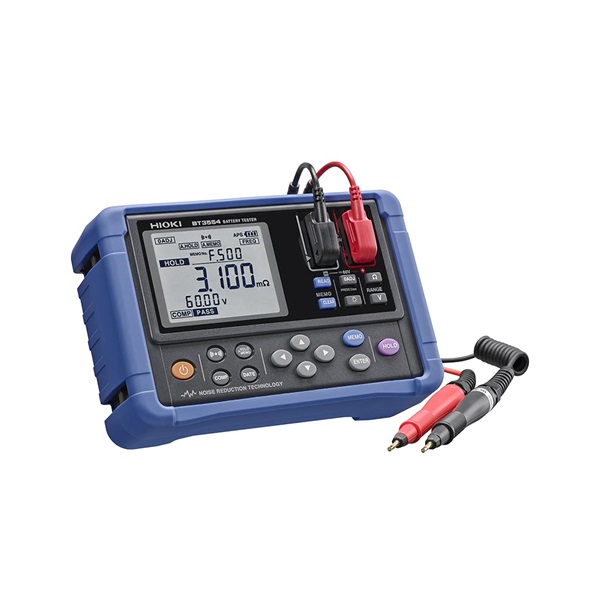

HIOKI BT3554-51 Battery Tester by HIOKI (SKU: PRD-1768587261880-hioki-bt3554-51-batt) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Resistance measurement range | 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges |
| Accuracy | ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt) |
| Testing source frequency | 1 kHz ±30 Hz |
| With function for avoiding noise frequency enabled | 1 kHz ±80 Hz |
| Testing current | 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range) |
| Open terminal Voltage | 5 V peak |
| Voltage measurement range ± 6 V (max. display ±6.000 V, resolution | 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt |
| Temperature measurement accuracy Measurement range | -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy*: ±1.0°C (±1.8°F) |
| Detail | * When using the Clip Type Lead with Temperature Sensor 9460. |
| * When using the Temperature Probe 9451, add ±0.5°C (±0.9°F) (cable length | 1.5 m [59.1"]). |
| * When using the Temperature Probe 9451S, add ±0.5°C (±0.9°F) (cable length | 0.1 m [3.94"]) |
| Absolute max. input voltage | 60 V DC max. (No AC input) |
| Measurement time | 100 ms |
| Response time Approx. | 1.6 sec. |
| Detail | Comparator Compares measured values with set threshold values to make judgments and reports them to the user. |
| Judgment notification method | Results are displayed as shown below (segment) and beeping tones sound. |
| When the Voltage value (high) | Resistance value (low)= PASS, Resistance value (medium)= WARNING, Resistance value (high)= FAIL |
| When the Voltage value (low) | Resistance value (low)= WARNING, Resistance value (medium)= WARNING, Resistance value (high)= FAIL |
| Detail | If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight. |
| User-selectable voltage judgment method | ABS (absolute value judgment), POL (polarity judgment) |
| Savable settings | 200 tables |
| Detail | Communication interface USB |
| Detail | Bluetooth® wireless communications (when Z3210 installed) |
| Detail | Other functions Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock |
| Power supply | LR6 (size AA) alkaline battery ×8 |
| Rated supply voltage | 1.5 V DC × 8 |
| Detail | (Nickel metal hydride batteries may be used. However, the battery life display is not supported in this configuration.) |
| Continuous operating time | Approx. 8.3 hr. (without Z3210 installed), Approx. 8.2 hr. (with Z3210 installed and wireless communications active) |
| Dimensions and mass | 199 mm (7.83 in) W × 132 mm (5.20 in)H × 60.6 mm (2.39 in)D (with protector), 960 g (33.9 oz) (including batteries and protector) |
| Detail | As per brand policy |
Resistance measurement range 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt) Testing source frequency: 1 kHz ±30 Hz With function for avoiding noise frequency enabled: 1 kHz ±80 Hz ...
