Home/Clamp Meter/HIOKI CM4141-50 AC Clamp Meter

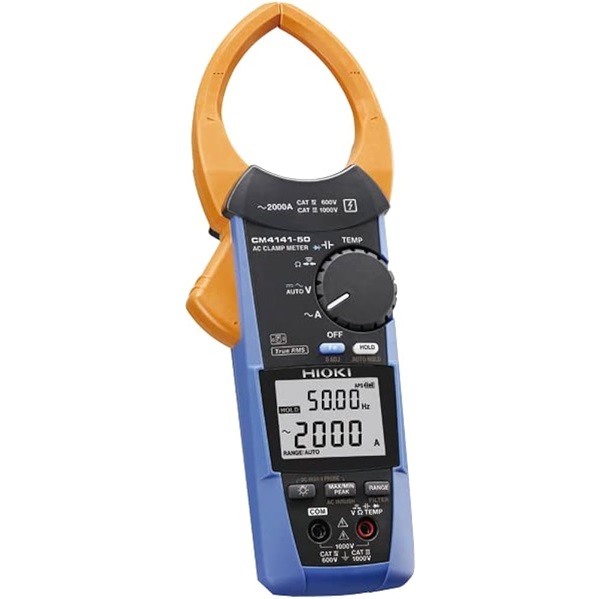

HIOKI CM4141-50 AC Clamp Meter

HIOKI CM4141-50 AC Clamp Meter by HIOKI (SKU: PRD-1768587115677-hioki-cm4141-50-ac-c) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

HIOKI CM4141-50 AC Clamp Meter
HIOKI CM4141-50 AC Clamp Meter

Product Information

Description:

AC Current range              60.00 A to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A (60 A range) Crest factor         for the 60.00 A range: 2.5 (greater than 50.00 A and less than or equal to 60.00 A) to 2000 A range: 1.5 (2000 A or less) DC Voltage r...

Brand:HIOKI
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
0
Dimensions:82 mm (3.23 in) W × 11 mm (0.43 in) D (D dimension is a range value of 44 mm (1.73 in) from the tip of the jaw)
Return Policy:7
HIOKI CM4141-50 AC Clamp Meter
Visit the OPTIMA CONNECT PVT. LTDHIOKI
₹27,500
₹25,0259% OFF
10000 in stock
AC Current range 60.00 A to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A (60 A range) Crest factor for the 60.00 A range: 2.5 (greater...
Quantity:
1

📋 Specifications

AC Current range 60.00 A to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz±1.5% rdg. ±0.08 A (60 A range)
Crest factor for the 60.00 A range2.5 (greater than 50.00 A and less than or equal to 60.00 A) to 2000 A range: 1.5 (2000 A or less)
DC Voltage range 600.0 ｍV to 1000 V (When using P2000600.0 V to 2000 V)
AC Voltage range 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz±0.9% rdg. 0.003 V (at 6 V)
DC+AC Voltage range 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45-66 Hz±1.0% rdg. ±0.013 V (at 6 V)
Resistance range 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy±0.7% rdg. ±0.5 Ω (at 600 Ω)
Electrostatic capacity range 1.000 μF to 1000 μF, 4 ranges, Basic accuracy±1.9% rdg. ±0.005 μF (at 1 μF)
Frequency range Voltage9.999 Hz to 999.9 Hz 3 ranges, Current: 99.99 Hz to 999.9 Hz 2 ranges, Basic accuracy: ±0.1% rdg. ±0.01 Hz (at 99.99 Hz)
Temperature (K) -40.0 to 400.0 ˚C, Basic accuracy±0.5% rdg. ±3.0 ˚C + temperature probe accuracy
DetailHarmonic levels [With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio.
Detail*Harmonics can be displayed with our free app GENNECT Cross.
Dustproof, waterproofIP20 (current measurement of voltage or hazardous live conductors under completely dry condition. Do not use when wet.)
DetailIP50 (when measuring resistance, or current of an insulated conductor (completely dry), and in storage)
Power supplyLR03 Alkaline battery ×2
Continuous useapprox. 48 hr (without Z3210 installed), approx. 24 hr. (with Z3210 installed and using wireless communications)
Other conditions100 A AC measurement, backlight off, 23°C reference value
Core jaw diameter φ55 mm (2.17 in), Jaw dimension82 mm (3.23 in) W × 11 mm (0.43 in) D (D dimension is a range value of 44 mm (1.73 in) from the tip of the jaw)
Smallest dimension of jaw cross-section11 mm (0.43 in) (Range value of 44 mm (1.73 in) from the tip of the jaw)
Dimensions and mass65 mm (2.56 in) W × 247 mm (9.72 in) H × 35 mm (1.38 in) D, 300 g (10.6 oz)
Included accessories Test LeadL9300 ×1, Carrying Case C0203 ×1, LR03 Alkaline battery ×2, Instruction Manual ×2, Operating Precautions ×1
Detail3 years
