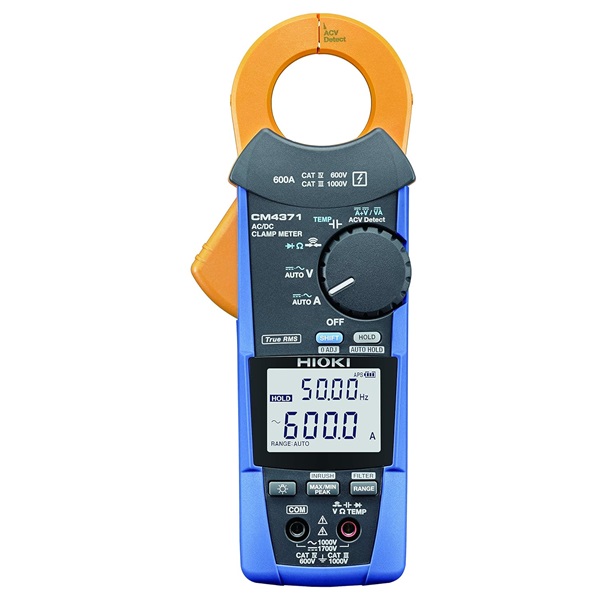

HIOKI CM4371-50 AC/DC Clamp Meter by HIOKI (SKU: PRD-1768587115854-hioki-cm4371-50-acdc) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| DC Current range 20.00 A/600.0 A, Basic accuracy | ±1.3% rdg. ±0.08 A (20 A range) |
| AC Current range 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy | 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A) |
| Crest factor 20.00 A range | 7.5 |
| 600.0 A range | 3 or less |
| DC+AC Current range 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz | ±1.3% rdg. ±0.13 A (at 20 A) |
| DC Voltage range 600.0 ｍV to 1000 V (When using P2000 | 600.0 V to 2000 V) |
| AC Voltage range 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz | ±0.9% rdg. ±0.003 V (at 6 V) |
| DC+AC Voltage range 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz | ±1.0% rdg. ±0.013 V (at 6 V) |
| Resistance range 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy | ±0.7% rdg. ±0.5 Ω (at 600 Ω) |
| Capacitance range 1.000 μF to 1000 μF, 4 ranges, Basic accuracy | ±1.9% rdg. ±0.005 μF (at 1 μF) |
| Frequency range 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy | ±0.1% rdg. ±0.003 Hz (at 9.999 Hz) |
| Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| Voltage detection Hi | 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz |
| Detail | Harmonic levels [With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio |
| Detail | *Harmonics can be displayed with our free app GENNECT Cross. |
| Dustproof, waterproof | IP20 (Voltage measurement in a completely dry condition. When jaw closes) |
| Detail | IP54 (While in storage) |
| Power supply | LR03 Alkaline battery ×2 |
| Continuous use | 40 hr (without Z3210 installed), 20 hr. (with Z3210 installed and using wireless communications) |
| Other conditions | 10 A AC measurement, backlight off, 23°C reference value |
| Core jaw diameter φ33 mm (1.30 in), Jaw dimension | 69 mm (2.72 in) W× 14 mm (0.55 in) D |
| Dimensions and mass | 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz) |
| Included accessories Test Lead | L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1 |
| Detail | 3 years |
DC Current range 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range) AC Current range 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A) Crest factor 20.00 A range: 7.5 600.0 A range: 3 or less DC+AC C...
