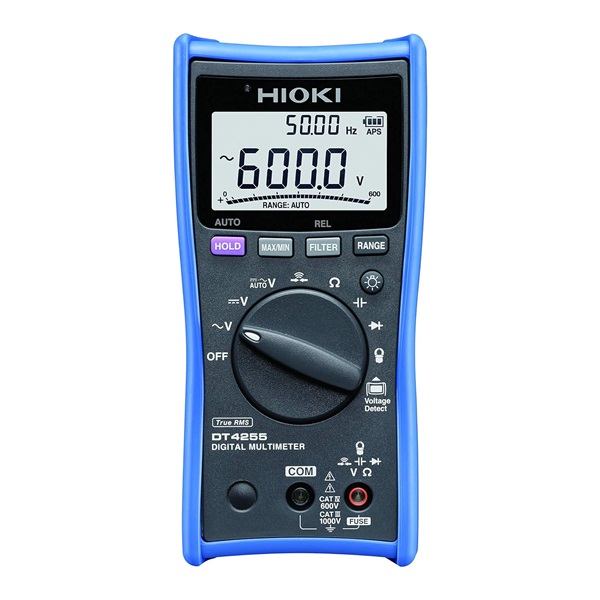

HIOKI DT4255 Digital Multimeter by HIOKI (SKU: PRD-1768587082661-hioki-dt4255-digital) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| DC Voltage range | 600.0 mV to 1000 V |
| 5 ranges, Basic accuracy | ±0.3 % rdg. ±3 dgt. |
| AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics | 40 Hz to 1 kHz |
| Basic accuracy 40 - 500 Hz | ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Detail | AUTO AC/DCV Yes |
| Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy | ±0.7 % rdg. ±3 dgt. |
| Detail | DC Current range N/A |
| From | 4 to 20mA Percentage conversion display N/A |
| Detail | AC Current range |
| (use with Clamp on probes) 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz | ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Detail | Temperature |
| Detail | (thermocouples) N/A |
| Voltage detection Hi | AC40 V to 600 V, Lo: AC80 V to 600 V |
| Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy | ±1.9 % rdg. ±5 dgt. |
| Frequency range | 99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage), |
| Basic accuracy | ±0.1 % rdg. ±1 dgt. |
| Continuity check Continuity threshold [ON] | 25 Ω or less, |
| [OFF] | 245 Ω or more, |
| Response time | 0.5 ms or more |
| Diode test Open terminal voltage | 5.0 V or less, Testing current 0.5 mA or less, |
| Threshold of forward voltage | 0.15 V to 1.5 V |
| Display Main and Sub displays | 4-digits LCD, max. 6000 digits, bar graph |
| Display refresh rates 5 times/s (Capacitance measurement | 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s) |
| Power supply LR03 alkaline batteries ×4, Continuous use | 130 hours (backlight OFF) |
| Dimensions and mass | 84 mm (3.31 in) W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, |
| Detail | 390 g (13.8 oz) (including batteries and holster) |
| Included accessories Test lead | L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4 |
| Detail | 3 years |
DC Voltage range 600.0 mV to 1000 V 5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt. AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz Basic accuracy 40 - 500 Hz: ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) AUTO AC/DCV Yes Resist...
Warranty
Warranty as per brand
