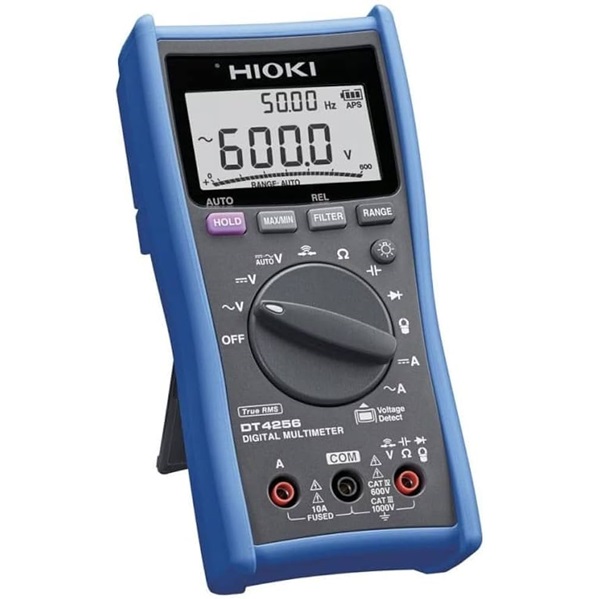

HIOKI DT4256 Digital Multimeter by HIOKI (SKU: PRD-1768587089889-hioki-dt4256-digital) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| DC Voltage range | 600.0 mV to 1000 V, 5 ranges |
| Basic accuracy | ±0.3 % rdg. ±3 dgt. |
| AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics | 40 Hz to 1 kHz |
| Basic accuracy 40 - 500 Hz | ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Detail | AUTO AC/DCV Yes |
| Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy | ±0.7 % rdg. ±3 dgt. |
| DC Current range | 60.00 mA to 10.00 A, 4 ranges, |
| Basic accuracy | ±0.9 % rdg. ±3 dgt. |
| AC Current range | 600.0 mA to 10.00 A, 3 ranges, |
| Basic accuracy 40 - 500 Hz | ±1.4 % rdg. ±3 dgt. |
| Detail | (True RMS, crest factor 3, 40 Hz to 1 kHz) |
| Detail | AC Current range |
| (use with Clamp on probes) 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz | ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Detail | Voltage detection |
| (50/60 Hz) Hi | AC40 V to 600 V, Lo: AC80 V to 600 V |
| Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy | ±1.9 % rdg. ±5 dgt. |
| Frequency range | 99.99 Hz (5 Hz or more) to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage and current), |
| Basic accuracy | ±0.1 % rdg. ±1 dgt. |
| Continuity check Continuity threshold [ON] | 25 Ω or less (Indicate buzzer sound, red LED), |
| [OFF] | 245 Ω or more, Response time: 0.5 ms or more |
| Diode test Open terminal voltage | 5.0 V or less, Testing current 0.5 mA or less, |
| Threshold of forward voltage | 0.15 V to 1.5 V |
| Display Main and Sub displays | 4-digits LCD, max. 6000 digits, bar graph. |
| Display refresh rates 5 times/s (Capacitance measurement | 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s) |
| Power supply LR03 alkaline batteries ×4, Continuous use | 130 hours (backlight OFF) |
| Dimensions and mass | 84 mm (3.31 in) W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, |
| Detail | 390 g (13.8 oz) (including batteries and holster) |
| Included accessories Test lead | L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4 |
| Detail | 3 years |
DC Voltage range 600.0 mV to 1000 V, 5 ranges Basic accuracy: ±0.3 % rdg. ±3 dgt. AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz Basic accuracy 40 - 500 Hz: ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) AUTO AC/DCV Yes Resist...
