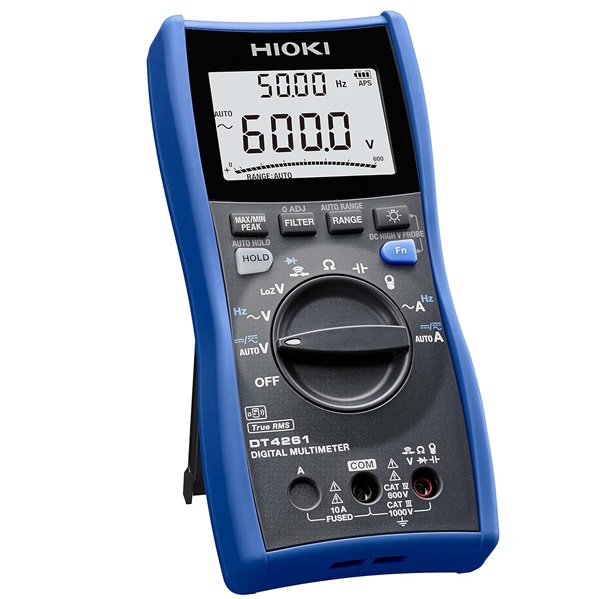

HIOKI DT4261 Digital Multimeter by HIOKI (SKU: PRD-1768587080870-hioki-dt4261-digital) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| DC Voltage range 600.0 mV to 1000 V, 5 ranges, Basic accuracy | ±0.15% rdg. ±2 dgt. |
| AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics | 40 Hz to 1 kHz |
| Basic accuracy 40 Hz - 500 Hz | ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less) |
| DC + AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics | DC, 40 Hz to 1 kHz |
| Basic accuracy DC, 40 Hz - 500 Hz | ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less) |
| LoZ V 600.0 V, 1 range, Frequency characteristics | DC, 40 Hz to 1 kHz. |
| Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy | ±0.7% rdg. ±3 dgt. |
| DC Current range | 600.0 mA to 10.00 A, 3 ranges |
| Basic accuracy | ±0.5% rdg. ±3 dgt. |
| AC Current range | 600.0 mA to 10.00 A, 3 ranges |
| Basic accuracy 40 Hz - 500 Hz | ±1.4% rdg. ±3 dgt. (True RMS, crest factor 3 or less) |
| Frequency characteristics | 40 Hz to 1 kHz |
| AC Current range (use | with Clamp on probes) 10.00 A to 1000 A, 7 ranges |
| Basic accuracy 40 Hz - 500 Hz | Add the Clamp on probe accuracy to ±0.9% rdg. ±3 dgt. |
| Detail | (True RMS, crest factor 3 or less) |
| Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy | ±1.9% rdg. ±5 dgt. |
| Continuity Check Continuity threshold ON | 25 Ω, Continuity threshold OFF : 245 Ω, Response time: 0.5 ms or more |
| Diode test Open terminal voltage | 2.0 V or less, Testing current: 0.2 mA or less, Threshold of forward voltage: 0.15 V to 1.8 V |
| Voltage frequency range | 99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage) |
| Basic accuracy | ±0.1% rdg. ±1 dgt. |
| Current frequency range | 99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current) |
| Detail | Harmonic levels [With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio. |
| Detail | *Harmonics can be displayed with our free app GENNECT Cross. |
| Display Main and sub displays | 4-digits LCD, max. 6000 digits (excluding frequency measurement), bar-graph. |
| Display refresh rates 5 times/s (Capacitance measurement | 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s) |
| Power supply LR6 (AA) alkaline batteries × 3, Continuous operating time | 130 hr. (without Z3210 installed), 70 hr. (with Z3210 installed and using wireless communications) |
| Dimensions and mass | 87 mm (3.43 in.) W × 185 mm (7.28 in.) H × 47 mm (1.85 in.) D, 480 g (16.9 oz.) (with test leads holder and batteries) |
| Included accessories Test Lead | L9300 × 1, Instruction Manual × 1, LR6 (AA) alkaline battery × 3, Operating Precautions ×1 |
| Detail | 3 years |
DC Voltage range 600.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.15% rdg. ±2 dgt. AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz Basic accuracy 40 Hz - 500 Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less) DC + AC Voltage...
