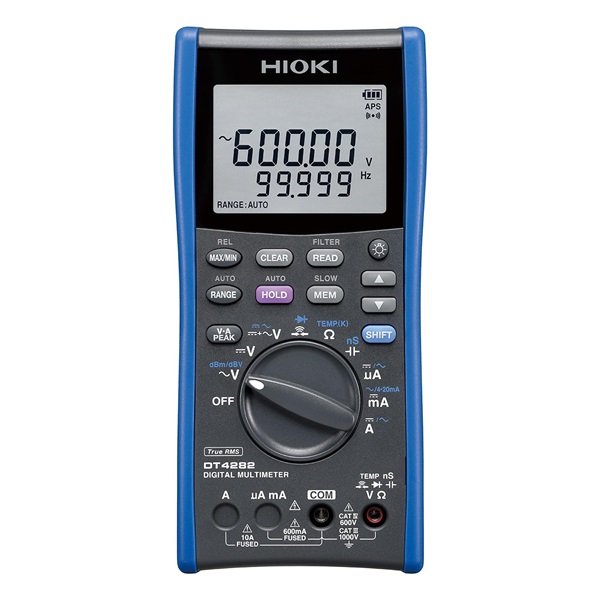

HIOKI DT4282 Digital Multimeter by HIOKI (SKU: PRD-1768587076600-hioki-dt4282-digital) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| DC Voltage range 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy | ±0.025 % rdg. ±2 dgt. |
| AC Voltage* range 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics | 20 Hz - 100 kHz |
| Basic accuracy 45 - 65 Hz | ±0.2 % rdg. ±25 dgt. (True RMS, crest factor 3) |
| DC + AC Voltage* range 6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics | 20 Hz - 100 kHz |
| Basic accuracy 45 - 65 Hz | ±0.3 % rdg. ±30 dgt. (True RMS, crest factor 3) |
| Resistance range 60.000 Ω to 600.0 MΩ, 8 ranges, (Conductance | 600.00 nS, DT4282 only) |
| Basic accuracy | ±0.03 % rdg. ±2 dgt. |
| DC Current range 600.00 μA to 10.000 A, 6 ranges, Basic accuracy | ±0.05 % rdg. ±5 dgt. |
| AC Current* range | 600.00 μA to 10.000 A, 6 ranges, |
| Basic accuracy 45 - 65 Hz | ±0.6 % rdg. ±5 dgt. (True RMS, crest factor 3) |
| Frequency characteristics | 20 Hz - 20 kHz (at 600 μA to 600 mA range) |
| Detail | AC Current* range |
| Detail | (use with Clamp on probes) N/A |
| Peak DC V measurement | Signal width 4 msec or more (single), 1 msec or more (repeated) |
| Signal width | 1 msec or more (single), 250 μsec or more (repeated) |
| Capacitance range 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy | ±1.0 % rdg. ±5 dgt. |
| Continuity Check Continuity threshold | 20/50/100/500 Ω, Response time: 10 ms or more |
| Diode test Open terminal voltage | 4.5 V or less, Testing current 1.2 mA or less, Threshold of forward voltage: 0.15 V to 3 V, seven stages. |
| Detail | Frequency range AC V, DC+AC V, AC A measurement, at pulse width 1 μs or more (50 % duty ratio) |
| Detail | 99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, ±0.005 % rdg. ±3 dgt. |
| dB conversion Standard impedance setting (dBm), | 4 Ω to 1200 Ω, 20 stages |
| Detail | Display dB conversion value of AC voltage (dBV) |
| Detail | Temperature |
| (thermocouples) K | -40.0 °C to 800.0 °C (-40.0 °F to 1472.0 °F) |
| Add accuracy of the Thermocouple probe to main unit accuracy | ±0.5 % rdg. ±3 °C |
| Display Main and Sub displays | 5-digits LCD, max. 60000 digits. |
| Display refresh rates 5 times/s (Capacitance measurement | 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s) |
| Power supply LR6 (AA) alkaline batteries ×4, Continuous use | 100 hours |
| Dimensions and mass | 93 mm (3.66 in) W × 197 mm (7.76 in) H× 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries) |
| Included accessories Test Lead | L9207-10 ×1, Instruction Manual ×1, LR6 Alkaline Battery ×4 |
| Detail | 3 Years |
DC Voltage range 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: ±0.025 % rdg. ±2 dgt. AC Voltage* range 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz - 100 kHz Basic accuracy 45 - 65 Hz: ±0.2 % rdg. ±25 dgt. (True RMS, crest factor 3) DC + AC Voltage*...
