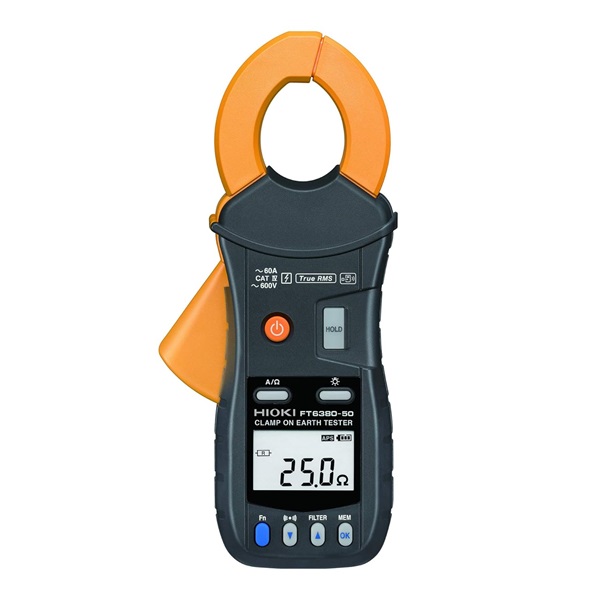

HIOKI FT6380-50 Clamp On earth Tester by HIOKI (SKU: PRD-1768587207659-hioki-ft6380-50-clam) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Note | For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value. |
| Earthing resistance range 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression | Less than 0.02 Ω, |
| Accuracy | ±1.5 % rdg. ±0.02 Ω |
| AC Current range 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression | Less than 0.05 mA, |
| Accuracy | ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less) |
| Maximum input current (Current | measurement) 100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency) |
| Maximum rated terminal-to-ground voltage | 600 VAC measurement category IV (anticipated transient overvoltage 8000 V) |
| Memory function | 2000 data |
| Detail | Alarm function For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold. |
| Detail | Harmonic levels [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio |
| Detail | *Harmonics can be displayed with our free app GENNECT Cross. |
| Detail | Other functions Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed)) |
| Display LCD, Max. 2,000 count Display refresh rate | Approx. 2 times/sec. |
| Dust-proof and waterproof | IP40 (EN60529) With Jaws Closed |
| Power supply | LR6 alkaline battery × 2 |
| Continuous operating time Approx. | 40 hours (25 Ω measurement, backlight off, without Z3210 installed) |
| Approx. | 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications |
| Maximum measurable conductor diameter φ | 32 mm (1.26 in) |
| Dimensions and mass | 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz) |
| Detail | Included accessories Carrying case, Resistance check loop (1 Ω±2%, 25Ω±1%), Strap, LR6 alkaline battery × 2, Instruction manual |
| Detail | 3 years |
Measurement principal Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated. Note: For multi grounded systems only. In a multi-grounded system, the l...
