Home/Component Testing/HIOKI RM3548 Resistance Meter

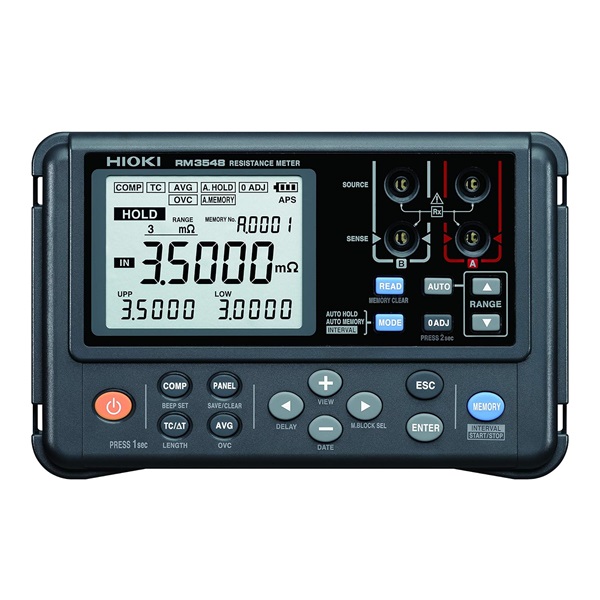

HIOKI RM3548 Resistance Meter (Component Testing)

HIOKI RM3548 Resistance Meter by HIOKI (SKU: PRD-1768587236927-hioki-rm3548-resista) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

HIOKI RM3548 Resistance Meter
HIOKI RM3548 Resistance Meter

Product Information

Description:

Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. Testing current  [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC Open-terminal voltage   5.5 V DC max. Temper...

Brand:HIOKI
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
0
Dimensions:and mass 192 mm (7
Return Policy:7
HIOKI RM3548 Resistance Meter
Visit the OPTIMA CONNECT PVT. LTDHIOKI
₹66,000
₹64,0203% OFF
10000 in stock
Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. Testing current...
Quantity:
1

📋 Specifications

Resistance range3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps
Measurement accuracy±0.020 % rdg. ±0.007 % f.s.
Testing current [at3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage5.5 V DC max.
Temperature measurement -10.0 to 99.9°C, accuracy±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)
DetailMeasurement speed Fixed
Display refresh rate Without OVCapprox. 100ms, With OVC: approx. 230ms
DetailAveraging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)
Memory storage Number of recordable data points(manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply LR6 (AA) Alkaline batteries ×8, Continuous use10 hours (Under our company’s conditions), Rated power consumption: 5 VA max.
Dimensions and mass192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D, 770 g (27.2 oz)
Detail3 Years

Product Information

Description:

Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. Testing current  [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC Open-terminal voltage   5.5 V DC max. Temper...

Brand:HIOKI
Seller:OPTIMA CONNECT PVT. LTD

Warranty

Warranty as per brand

Original Products

100% Original Products

Secure Payments

Secure payments

Buyer Protection

100% Buyer protection

Top Brands

Top Brands

OPTIMA CONNECT PVT. LTD

OPTIMA CONNECT PVT. LTD

Where Technology Meets Trust.

👥 0 followers

Optimaconnect Pvt. Ltd. is an e-commerce and retail company engaged in selling electronic and hardware products through both online and offline channels. The company focuses on delivering quality tech...

📍 Location: N/A

⭐ Rating: N/A

Related Products

UNI-T UT116A SMD Tester

UNI-T UT116A SMD Tester

UNI-T

Component Testing

₹2,500
In Stock
UNI-T UT612 LCR/ESR Meter

UNI-T UT612 LCR/ESR Meter

UNI-T

Component Testing

₹16,500
In Stock
FNIRSI FNB58 USB-tester with Bluetooth

FNIRSI FNB58 USB-tester with Bluetooth

FNIRSI

Component Testing

₹6,500
In Stock
FNIRSI FNB48P USB Voltage Current Tester

FNIRSI FNB48P USB Voltage Current Tester

FNIRSI

Component Testing

₹4,500
In Stock
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI

Component Testing

₹3,500
In Stock
UNI-T UT620C+ Micro Ohm Meter

UNI-T UT620C+ Micro Ohm Meter

UNI-T

Component Testing

₹22,500
In Stock

Product Key Takeaway & AI Summary

The HIOKI RM3548 Resistance Meter is a professional-grade component testing product manufactured by HIOKI. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. Testing current...

Frequently Asked Questions

What is HIOKI RM3548 Resistance Meter?

Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. Testing current...

How do I choose the correct specifications or size?

Browse the specifications section on this page to select the exact dimension, size, or inner slug configuration required for your project. You can submit quotes for bulk volumes directly to verified suppliers.
