Home/Insulation Tester/HTC Instruments HTC 8250IN Insulation Tester

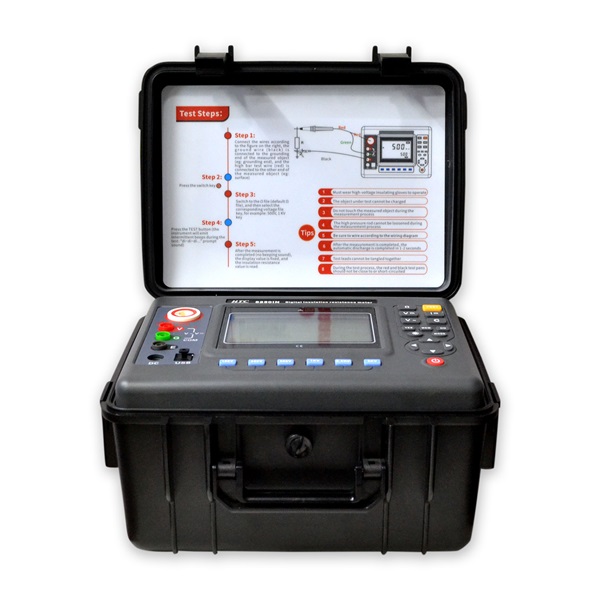

HTC Instruments HTC 8250IN Insulation Tester - Accuracy: ±3%rdg±5dgt

HTC Instruments HTC 8250IN Insulation Tester by HTC Instruments (SKU: PRD-1768587171178-htc-instruments-htc-) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

HTC Instruments HTC 8250IN Insulation Tester
HTC Instruments HTC 8250IN Insulation Tester

Product Information

Description:

Model   HTC 8250 Rated applied voltage 100; 250; 500; 1000; 2500; 5KV Resistance limit range 0.01 MΩ ~ 10TΩ Resolution 0.01MΩ Accuracy ±3%rdg±5dgt Output short-circuits current   ≥6mA Function             Insulation resistance test, voltage test, current test, capacitance test Basic condition...

Brand:HTC Instruments
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:2720g (including battery) Power Consumption Standby: 30mA Max (backlight off) | Turn on backlight: 42mA Max | Measure：200mA Max(backlight off) Insulation Resistance ≥50MΩ(between Measuring line and housing Pressure Resistance AC3kV/50Hz 1min Working Temp grams
Return Policy:7
HTC Instruments HTC 8250IN Insulation Tester
Visit the OPTIMA CONNECT PVT. LTDHTC Instruments
₹53,000
₹46,11013% OFF
10000 in stock
Model HTC 8250 Rated applied voltage 100; 250; 500; 1000; 2500; 5KV Resistance limit range 0.01 MΩ ~ 10TΩ Resolution 0.01MΩ Accuracy ±3%rdg±5dgt Output short-circuits current ≥6mA Function ...
Quantity:
1

📋 Specifications

Model HTC8250
Rated applied voltage100; 250; 500; 1000; 2500; 5KV
Resistance limit range0.01 MΩ ~ 10TΩ
Resolution0.01MΩ
Accuracy±3%rdg±5dgt
Output short-circuits current≥6mA
DetailFunction Insulation resistance test, voltage test, current test, capacitance test
Basic condition Basiccondition23º±5º, below 75%rh
Rated voltage (V)100V; 250V; 500V; 1000V; 2500V; 5000V Accuracy rated voltage x (1±10%)
Insulation resistance range (GΩ) 0.01MΩ -10TΩ Accuracy±3%rdg±5dgt Resolution: 0.01MΩ
DC voltage range 0.1~1000V Accuracy±1.5%rdg±5dgt Resolution: 0.1V
AC voltage range 0.1~750V Accuracy±1.5%rdg±5dgt Resolution: 0.1V
DC current measurement 0.01nA~6mA Accuracy±5%rdg±5dgt Resolution: 0.01nA
Capacitance test 10nF~60uF Accuracy±10%rdg±5dgt Resolution: 10nF
DetailAbsorption ratio and polarization index measurement power Have
Instrument weight2720g (including battery)
Power Consumption Standby30mA Max (backlight off) | Turn on backlight: 42mA Max | Measure：200mA Max(backlight off)
Insulation Resistance≥50MΩ(between Measuring line and housing
Pressure ResistanceAC3kV/50Hz 1min
Working Temp. and Humidity-10%ºC+50ºC＜85%RH
Storage Temp. and Humidity-10%ºC+55ºC＜90%RH
DetailSuitable for Safety Regulations Suitable for Safety Regulations
DetailAs per brand policy

Product Information

Description:

Model   HTC 8250 Rated applied voltage 100; 250; 500; 1000; 2500; 5KV Resistance limit range 0.01 MΩ ~ 10TΩ Resolution 0.01MΩ Accuracy ±3%rdg±5dgt Output short-circuits current   ≥6mA Function             Insulation resistance test, voltage test, current test, capacitance test Basic condition...

Brand:HTC Instruments
Seller:OPTIMA CONNECT PVT. LTD

Warranty

Warranty as per brand

Original Products

100% Original Products

Secure Payments

Secure payments

Buyer Protection

100% Buyer protection

Top Brands

Top Brands

OPTIMA CONNECT PVT. LTD

OPTIMA CONNECT PVT. LTD

Where Technology Meets Trust.

👥 0 followers

Optimaconnect Pvt. Ltd. is an e-commerce and retail company engaged in selling electronic and hardware products through both online and offline channels. The company focuses on delivering quality tech...

📍 Location: N/A

⭐ Rating: N/A
