Home/Function Generator/OWON AG 1022F Arbitrary Wave Function Generator

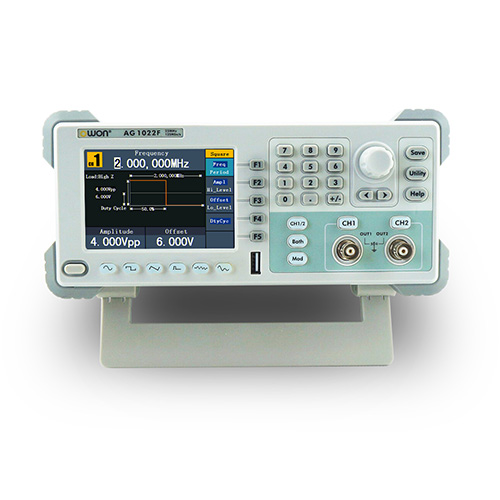

OWON AG 1022F Arbitrary Wave Function Generator

OWON AG 1022F Arbitrary Wave Function Generator by OWON (SKU: PRD-1768587205764-owon-ag-1022f-arbitr) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

OWON AG 1022F Arbitrary Wave Function Generator
OWON AG 1022F Arbitrary Wave Function Generator

Product Information

Description:

Channel dual Frequency Output 25MHz Sample Rate 125MS/s Vertical Resolution 14 bits Waveform: Standard Waveform Sine, Square, Pulse, Ramp, and Noise Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 26 built-in waveforms, and other user-defined arbitrary ...

Brand:OWON
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:(without package) 3 grams
Return Policy:7
Packing Standard:a frequency counter (Range: 100 MHz - 200 MHz)
OWON AG 1022F Arbitrary Wave Function Generator
Visit the OPTIMA CONNECT PVT. LTDOWON
₹38,900
₹33,06515% OFF
10000 in stock
Channel dual Frequency Output 25MHz Sample Rate 125MS/s Vertical Resolution 14 bits Waveform: Standard Waveform Sine, Square, Pulse, Ramp, and Noise Arbitrary Waveform: Exponential Rise, Exponential F...
Quantity:
100

📋 Specifications

DetailChannel dual
Frequency Output25MHz
Sample Rate125MS/s
Vertical Resolution14 bits
WaveformStandard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary WaveformExponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others,
total26 built-in waveforms, and other user-defined arbitrary waveforms
DetailFrequency (resolution 32 bits)
Sine1μHz - 25MHz
Square1μHz - 5MHz
Pulse1μHz - 5MHz
Ramp1μHz - 1MHz
Noise25MHz (-3dB) (typical)
Arb1μHz - 10MHz
Amplitude1m Vpp - 10 Vpp (50Ω), 1m Vpp - 20 Vpp (high impedance)
Resolution1m Vpp or 14 bits
DC Offset Range (AD+DC)±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution1mV
Load Impedance50Ω (typical)
DetailArbitrary Waveform
Wave Length2 pts to 8K pts
Non-volatile Memory26 waveforms
DetailModulation
DetailModulation Waveform AM, FM, PM, FSK, Sweep, and Burst
Modulation Frequency2mHz to 20.00KHz (FSK 1μHz - 100KHz)
DetailCounter
Function Frequency Period, +Width,-Width, +Duty, and -Duty
Frequency Range100mHz - 200MHz
Frequency Resolution6 digits/s
DetailInput / Output
Display3.9 inch (480 × 320 pixels) TFT LCD
Detailcounter, external modulation input / output, external trigger input / output,
Detailexternal reference clock input / output
Communication Interface USB host, USB device,RS232
DetailMechanical
Dimension (W×H×D)235 × 110 × 295 (mm)
Weight (withoutpackage) 3.00 kg
As per Owon- 1 Year

Product Information

Description:

Channel dual Frequency Output 25MHz Sample Rate 125MS/s Vertical Resolution 14 bits Waveform: Standard Waveform Sine, Square, Pulse, Ramp, and Noise Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 26 built-in waveforms, and other user-defined arbitrary ...

Brand:OWON
Seller:OPTIMA CONNECT PVT. LTD

Warranty

Warranty as per brand
