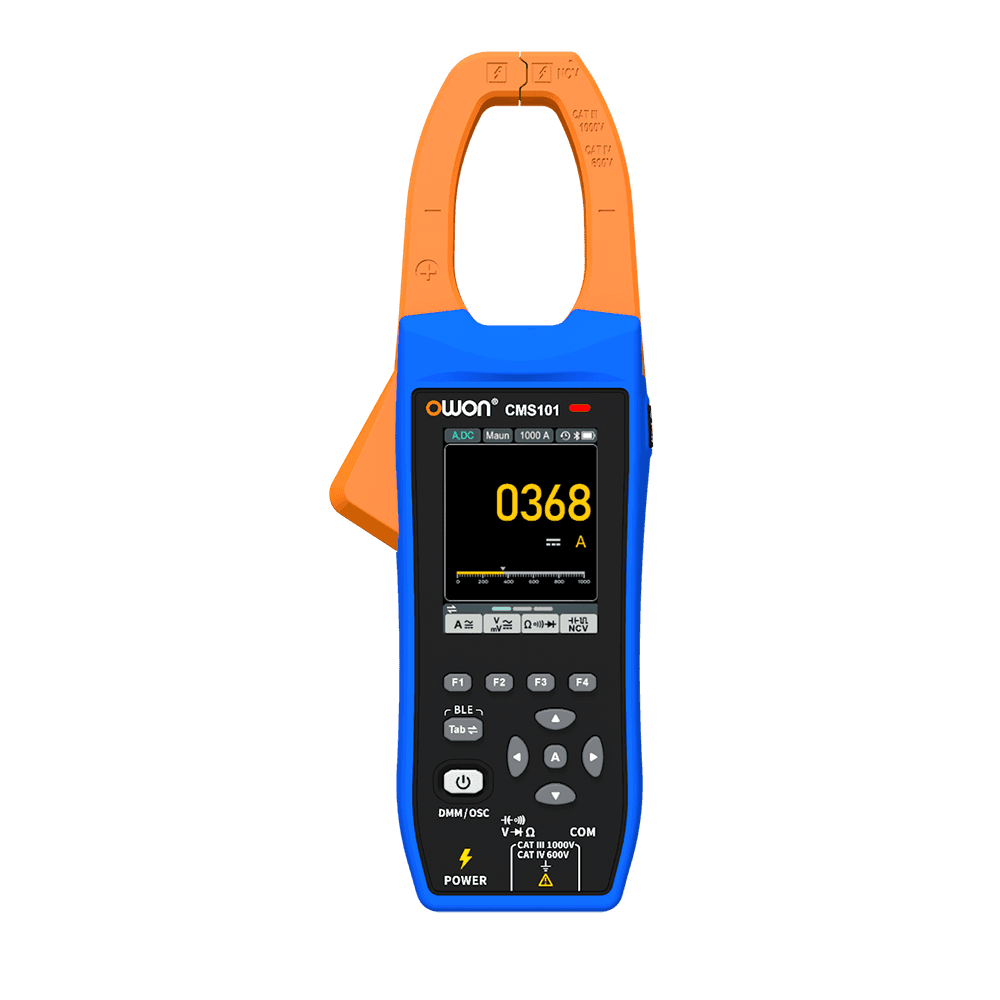

OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder (Clamp Meter) - Range: 20 mV / 200 mV / 2 V / 20 V / 200 V / 1000 V, Accuracy: ±(0.1% + 5 digits), Range: 200 mV / 2 V / 20 V / 200 V / 1000 V, Accuracy: ±(0.6% + 10 digits), Range: 20 A / 200 A / 600 A / 1000 A, Accuracy: ±(2.0% + 5 digits), Accuracy: ±(2.5% + 5 digits), Accuracy: ±(10% + 10 digits), Range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ, Accuracy: ±(0.3% + 5 digits), Range: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2000 µF / 20 mF, Accuracy: ±(3.0% + 5 digits), Range: 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz, Range: 0.1% – 99.9%, Accuracy: ±(1.2% + 3 digits), Voltage: 1 MHz

Product Key Takeaway & AI Summary

The OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder is a professional-grade clamp meter product manufactured by OWON. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Technical Specifications General Display: 2.8-inch IPS LCD Display Counts: 2000 counts True RMS: Yes Clamp Opening: 38 mm Battery Type: 1 × 18650 Lithium Battery (3.7V) Dimensions (L × W × H): 248 × 94.5 × 37.8 mm Data Interface: Bluetooth (Mobile App Support) Data Storage: CSV export via mobile app Auto Power Off: Yes Low Battery Indicator: Yes Multimeter Specifications DC Voltage Range: 20 mV / 200 mV / 2 V / 20 V / 200 V / 1000 V Accuracy: ±(0.1% + 5 digits) AC Voltage Range: 200 mV / 2 V / 20 V / 200 V / 1000 V Accuracy: ±(0.6% + 10 digits) DC Current Range: 20 A / 200 A / 600 A / 1000 A Accuracy: ±(2.0% + 5 digits) AC Current Range: 20 A / 200 A / 600 A / 1000 A Accuracy: ±(2.5% + 5 digits) Inrush Current Range: 20 A / 200 A / 600 A / 1000 A Accuracy: ±(10% + 10 digits) Resistance Range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ Accuracy: ±(0.3% + 5 digits) Capacitance Range: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2000 µF / 20 mF Accuracy: ±(3.0% + 5 digits) Frequency Range: 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz Accuracy: ±(0.1% + 5 digits) Duty Cycle Range: 0.1% – 99.9% Accuracy: ±(1.2% + 3 digits) Oscilloscope Specifications Analog Bandwidth Voltage: 1 MHz Current: 1 kHz Channels 1 Channel Sample Rate 5 MSa/s Maximum Input Voltage 1000 V Input Impedance 10 MΩ Maximum Current Measurement 1000 A Time Base 2.5 µs/div – 10 s/div Sensitivity 30 mV/div – 500 V/div Trigger Modes Auto / Normal Trigger Type Rise / Fall Measurement Functions RMS Period Frequency Maximum Minimum Peak-to-Peak Average Sampling Depth 4K Warranty 1 Year Application Electrical maintenance technicians Industrial automation engineers EV and motor diagnostics

Frequently Asked Questions

What is OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder?

Technical Specifications General Display: 2.8-inch IPS LCD Display Counts: 2000 counts True RMS: Yes Clamp Opening: 38 mm Battery Type: 1 × 18650 Lithium Battery (3.7V) Dimensions (L × W × H): 248 × 94.5 × 37.8 mm Data Interface: Bluetooth (Mobile App Support) Data Storage: CSV export via mobile app Auto Power Off: Yes Low Battery Indicator: Yes Multimeter Specifications DC Voltage Range: 20 mV / 200 mV / 2 V / 20 V / 200 V / 1000 V Accuracy: ±(0.1% + 5 digits) AC Voltage Range: 200 mV / 2 V / 20 V / 200 V / 1000 V Accuracy: ±(0.6% + 10 digits) DC Current Range: 20 A / 200 A / 600 A / 1000 A Accuracy: ±(2.0% + 5 digits) AC Current Range: 20 A / 200 A / 600 A / 1000 A Accuracy: ±(2.5% + 5 digits) Inrush Current Range: 20 A / 200 A / 600 A / 1000 A Accuracy: ±(10% + 10 digits) Resistance Range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ Accuracy: ±(0.3% + 5 digits) Capacitance Range: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2000 µF / 20 mF Accuracy: ±(3.0% + 5 digits) Frequency Range: 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz Accuracy: ±(0.1% + 5 digits) Duty Cycle Range: 0.1% – 99.9% Accuracy: ±(1.2% + 3 digits) Oscilloscope Specifications Analog Bandwidth Voltage: 1 MHz Current: 1 kHz Channels 1 Channel Sample Rate 5 MSa/s Maximum Input Voltage 1000 V Input Impedance 10 MΩ Maximum Current Measurement 1000 A Time Base 2.5 µs/div – 10 s/div Sensitivity 30 mV/div – 500 V/div Trigger Modes Auto / Normal Trigger Type Rise / Fall Measurement Functions RMS Period Frequency Maximum Minimum Peak-to-Peak Average Sampling Depth 4K Warranty 1 Year Application Electrical maintenance technicians Industrial automation engineers EV and motor diagnostics

Does this product come with a warranty?

Yes, the OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder is backed by a 1 Year warranty, covering structural defects and manufacturer failures during standard operations.

How do I choose the correct specifications or size?

Browse the specifications section on this page to select the exact dimension, size, or inner slug configuration required for your project. You can submit quotes for bulk volumes directly to verified suppliers.
