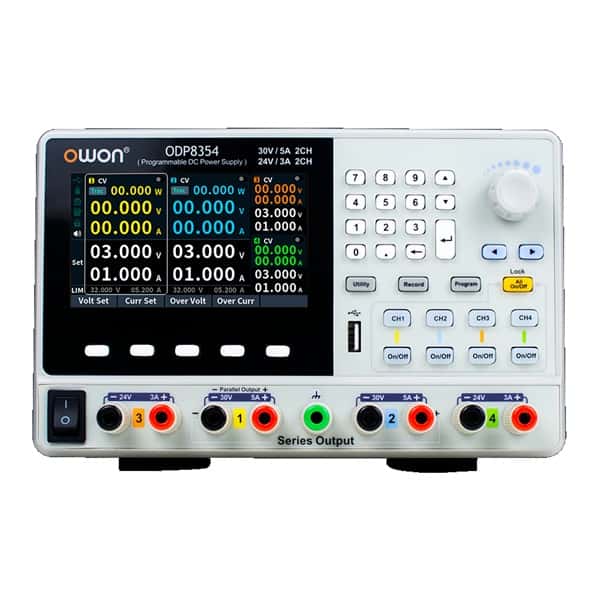

OWON ODP8354 Programmable DC Power Supply

Product Key Takeaway & AI Summary

The OWON ODP8354 Programmable DC Power Supply is a professional-grade power supply product manufactured by OWON. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Technical Specifications Output Ratings 4 (independent controllable channel) Voltage / Current CH1: 30V/5A, Maximum 90W constant power output CH2: 30V/5A, Maximum 90W constant power output CH3: 24V/3A, Maximum 24W constant power output CH4: 24V/3A, Maximum 24W constant power output CH1, CH2 Parallel Voltage / Current 60V/5A, 180W constant power output CH1, CH2 Series Voltage / Current 30V/10A, 180W constant power output Max output power 228W Settings Resolution 1mV/1mA Read Back Resolution 1mV/1mA Settings Accuracy (Within 12 months) (25℃±5℃) Voltage Independent：±（0.03% of reading+10) mV；Parallel：±（0.03% of reading+10) mV； Series：±（0.06% of reading+20) mV Programmable output Storage 1M points; 100 groups Time setting Second Voltage Voltage ≤0.01%+3mV Regulation Current ≤0.01%+3mA Current Independent：±（0.1% of reading+5) mA；Parallel：±（0.2% of reading+20) Ma; Series：±（0.1% of reading+5) mA Data Record Function 10k groups of data (voltage, current, power) Working temperature 0-40℃ Ports USB Host, USB Device, RS232, LAN, supports USB TMC protocol Display 4.3 inch IPS LCD Dimensions 290mm（W）*130mm（H）*212mm（D） Device weight ≈9kg Warranty As per Brand policy Application Industrial uses

Frequently Asked Questions

What is OWON ODP8354 Programmable DC Power Supply?

Technical Specifications Output Ratings 4 (independent controllable channel) Voltage / Current CH1: 30V/5A, Maximum 90W constant power output CH2: 30V/5A, Maximum 90W constant power output CH3: 24V/3A, Maximum 24W constant power output CH4: 24V/3A, Maximum 24W constant power output CH1, CH2 Parallel Voltage / Current 60V/5A, 180W constant power output CH1, CH2 Series Voltage / Current 30V/10A, 180W constant power output Max output power 228W Settings Resolution 1mV/1mA Read Back Resolution 1mV/1mA Settings Accuracy (Within 12 months) (25℃±5℃) Voltage Independent：±（0.03% of reading+10) mV；Parallel：±（0.03% of reading+10) mV； Series：±（0.06% of reading+20) mV Programmable output Storage 1M points; 100 groups Time setting Second Voltage Voltage ≤0.01%+3mV Regulation Current ≤0.01%+3mA Current Independent：±（0.1% of reading+5) mA；Parallel：±（0.2% of reading+20) Ma; Series：±（0.1% of reading+5) mA Data Record Function 10k groups of data (voltage, current, power) Working temperature 0-40℃ Ports USB Host, USB Device, RS232, LAN, supports USB TMC protocol Display 4.3 inch IPS LCD Dimensions 290mm（W）*130mm（H）*212mm（D） Device weight ≈9kg Warranty As per Brand policy Application Industrial uses

Does this product come with a warranty?

Yes, the OWON ODP8354 Programmable DC Power Supply is backed by a As per Brand policy warranty, covering structural defects and manufacturer failures during standard operations.

How do I choose the correct specifications or size?

Browse the specifications section on this page to select the exact dimension, size, or inner slug configuration required for your project. You can submit quotes for bulk volumes directly to verified suppliers.
