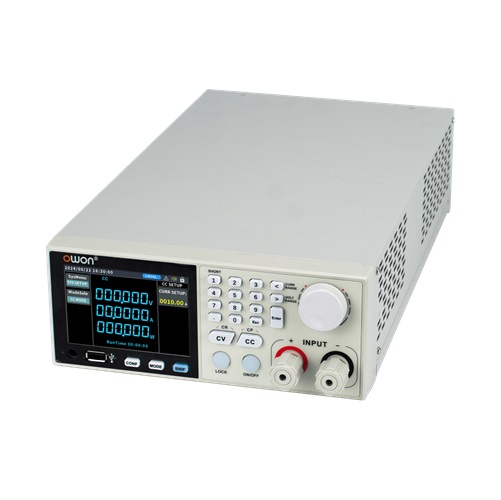

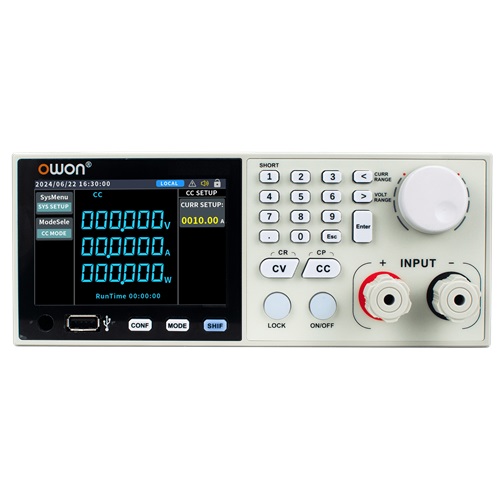

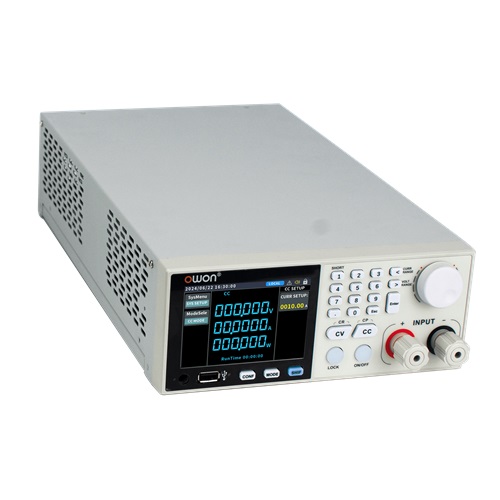

OWON OEL8512 DC Electronic Load, 400W by OWON (SKU: PRD-1768587264624-owon-oel8512-dc-elec) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Range W | 0-400 |
| Resolution mW | 10 |
| Accuracy | 0.1%+0.1%FS |
| Detail | Protection |
| Over power Protection W | >OPP, 10ms delay protect |
| Over voltage Protection V | >OVP, 0.1ms delay protect |
| Over current Protection V | >OCP, 0.1ms delay protect |
| Over temperature | 85℃ |
| CC mode A | >40 |
| CV mode V | 0 |
| CR mode mΩ | 50 |
| Detail | AC Parameters |
| Voltage Range V | 110V ±10% or 220V ±10% |
| Frequency Range Hz | 50/60Hz |
| Detail | Interface |
| Detail | RS-232 SCPI support. |
| Detail | General |
| Detail | Heat dissipation Internal intelligent fan with forced air cooling |
| Safety Complies with European EMC Directive | 89/336/EEC for Class A testing and measurement products |
| Withstand voltage (output | to ground) 500V/DC/1mA |
| Withstand voltage (Input | to ground) 1.5KV/AC/5mA |
| Dimension(LWH) | 375mm*215mm*88mm |
| Weight kg | 4 |
| Detail | As per Brand policy |
Range W 0-400 Resolution mW 10 Accuracy 0.1%+0.1%FS Protection Over power Protection W >OPP, 10ms delay protect Over voltage Protection V >OVP, 0.1ms delay protect Over current Protection V >OCP, 0.1ms delay protect Over temperature 85℃ Short CC mode A >40 CV mode V 0 CR mode mΩ 50 AC Pa...
