Home/Multimeter/UNI-T UT8804E Benchtop Multimeter- True Rms

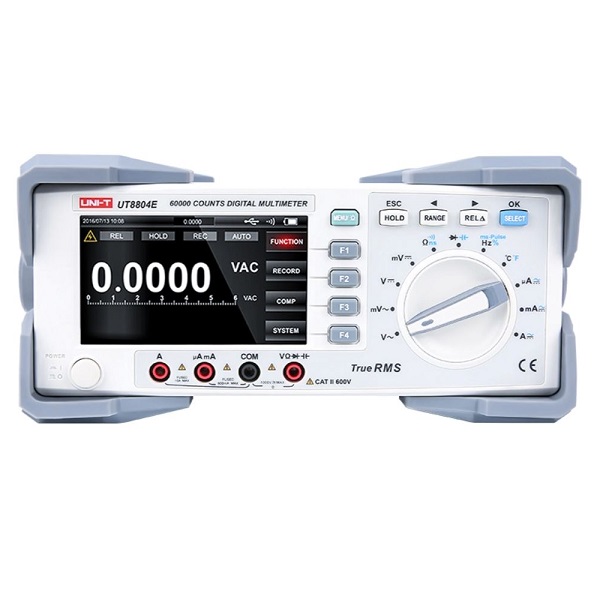

UNI-T UT8804E Benchtop Multimeter- True Rms - size: 320mm x 265mm x 110mm

UNI-T UT8804E Benchtop Multimeter- True Rms by UNI-T (SKU: PRD-1768587086633-uni-t-ut8804e-bencht) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

UNI-T UT8804E Benchtop Multimeter- True Rms
UNI-T UT8804E Benchtop Multimeter- True Rms

Product Information

Description:

AC voltage measurement ( Range / Resolution / Accuracy ) : 60mV / 0.001mV / 45 ~ 1kHz ±(0.6%+60) // 1k ~ 10kHz ±(1.2%+60) // 10k ~ 20kHz ±(3%+60) // 20k ~ 100kHz ±(4%+60) 600mV / 0.01mV / 45 ~ 1kHz ±(0.3%+30 // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40 //20k ~ 100kHz ±(4%+40) 6V / 0.0001V / 45 ~...

Brand:UNI-T
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
0
Dimensions:320mm x 265mm x 110mm
Return Policy:7
Packing Standard:IEC 61010: CAT II 600V
UNI-T UT8804E Benchtop Multimeter- True Rms
Visit the OPTIMA CONNECT PVT. LTDUNI-T
₹31,500
₹29,6106% OFF
10000 in stock
AC voltage measurement ( Range / Resolution / Accuracy ) : 60mV / 0.001mV / 45 ~ 1kHz ±(0.6%+60) // 1k ~ 10kHz ±(1.2%+60) // 10k ~ 20kHz ±(3%+60) // 20k ~ 100kHz ±(4%+60) 600mV / 0.01mV / 45 ~ 1kHz ±...
Quantity:
61010

📋 Specifications

Detail60mV / 0.001mV / 45 ~ 1kHz ±(0.6%+60) // 1k ~ 10kHz ±(1.2%+60) // 10k ~ 20kHz ±(3%+60) // 20k ~ 100kHz ±(4%+60)
Detail600mV / 0.01mV / 45 ~ 1kHz ±(0.3%+30 // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40 //20k ~ 100kHz ±(4%+40)
Detail6V / 0.0001V / 45 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40) // 20k ~ 100kHz ±(4%+40)
Detail60V / 0.001V / 45 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40) // 20k ~ 100kHz ±(4%+40)
Detail600V / 0.01V / 45 ~ 1kHz ±(0.4%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40) // 20k ~ 100kHz for reference only
Detail1000V / 0.1V / 45 ~ 1kHz ±(0.6%+30) // 1k ~ 5kHz ± (3%+40) // 5k ~ 10kHz ± (6%+40) // 10k ~ 100kHz for reference only
Detail60mV / 0.001mV / ±(0.025 %+20)
Detail600mV / 0.01mV / ±(0.025 %+5)
Detail6V / 0.001V / ±(0.025 %+5)
Detail60V / 0.001V / ±(0.025 %+5)
Detail600V / 0,01V / ±(0.025 %+5)
Detail1000V / 0,1V / ±(0.003%+5)
Input impedanceabout 10MΩ
overload protection1 000 V
DetailThe REL function should be used to compensate for bias when set to 60 mV.
Detail60mV / 0.001mV / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
Detail600mV / 0.01mV / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
Detail6V / 0.0001V / 50 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
Detail60V / 0.001V / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
Detail600V / 0.01V / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz for reference only // 10k ~ 35kHz for reference only
Detail1000V / 0.1V / 50 ~ 1kHz ±(1.2%+80) // 1k ~ 10kHz for reference only // 10k ~ 35kHz for reference only
Detail600μA / 0.01μA / 45 ~ 1kHz ±(0.6%+40) // 1k ~ 10kHz ±(1.2%+40)
Detail6000μA / 0.1μA / 45 ~ 1kHz ±(0.6%+20) // 1k ~ 10kHz ±(1.2%+40)
Detail60mA / 0.001mA / 45 ~ 1kHz ±(0.6%+40) // 1k ~ 10kHz ±(1.2%+40)
Detail600mA / 0.01mA / 45 ~ 1kHz ±(0.6%+20) // 1k ~ 10kHz ±(1.2%+40)
Detail20A / 0.001A / 45 ~ 1kHz ±(1%+20) // 1k ~ 10kHz ±(3%+40
Detail600μA / 0.01μA / ±(0.08%+20)
Detail6000μA / 0.1μA / ±(0.08%+10)
Detail60mA / 0.001mA / ±(0.08%+20)
Detail600mA / 0.01mA / ±(0.15%+10)
Detail20A / 0.001A / ±(0.5%+10)
Detail600μA / 0.01μA / 50 ~ 1kHz ±(0.8%+40) // 1k ~ 10kHz ±(2.0%+40)
Detail6000μA / 0.1μA / 50 ~ 1kHz ±(0.8%+20) // 1k ~ 10kHz ±(2.0%+40)
Detail60mA / 0.001mA / 50 ~ 1kHz ±(0.8%+40) // 1k ~ 10kHz ±(2.0%+40)
Detail600mA / 0.01mA / 50 ~ 1kHz ±(0.8%+20) // 1k ~ 10kHz ±(2.0%+40)
Detail20A / 0.001A / 45 ~ 1kHz ±(1,2%+20) // 1k ~ 10kHz ± (3%+40)
600Ω / 0.01Ω / v režimu REL±(0.05%+10)
Detail6kΩ / 0.0001kΩ / ±(0.05%+2)
Detail60kΩ / 0.001kΩ / ±(0.05%+2)
Detail600kΩ / 0.01kΩ / ±(0.05%+2)
Detail6MΩ / 0.0001MΩ / ±(0.3%+10)
Detail60MΩ / 0.001MΩ / ±(2%+10)
Detail60nS / 0,01nS / ± (2%+10)
Detail6nF / 0.001nF / ±(3%+10)
Detail60nF / 0.01nF / ±(2.5%+5)
Detail600nF / 0.1nF / ±(2%+5)
Detail6μF / 0.001μF / ±(2%+5)
Detail60μF / 0.01μF / ±(2%+5)
Detail600μF / 0.1μF / ±(2%+5)
Detail6mF / 1μF / ±(5%+5)
Detail60mF / 10μF / Not specified
Detail-40°C – 40°C / 1°C / ±(2.0%+30)
Detail40°C – 400°C / 1°C / ±(1 .0%+30)
Detail100°C – 1000°C / 1°C / ±2.5%
Detail-40°F – 104°F / 1°F / ±(2.5%+50)
Detail104°F – 752°F / 1°F / ±(1 .5%+50)
Detail752°F – 1832°F / 1°F / ±2.5%
Detail60Hz / 0,001Hz / ±(0.02%+8)
Detail600Hz / 0,01Hz / ±(0.01%+5)
Detail6kHz / 0,0001Hz / ±(0.01%+5)
Detail60kHz / 0,001Hz / ±(0.01%+5)
Detail600kHz / 0,01Hz / ±(0.01%+5)
Detail6MHz / 0,0001MHz / ±(0.01%+5)
Detail60MHz / 0,001MHz / ±(0.01%+5)
10Hz – 30MHz600 mV ≤ a ≤ 30Vrm
> 30 MHzNot specified
Detail10% ~ 90% (10Hz-2kHz) / 0.01 / ±(1.2%+30)
Detail250ms / 0.001ms ~ 0.01ms / ±(1.2%+30)
10 Hz - 200 kHzPulse width> 2μs
Resolution0.01Ω
The control voltage is about3V
Short circuit warningIf the resistance is less than 10Ω, the buzzer will sound permanently.
If the resistance is> 50Ω, the buzzer will be silent.
Open circuit warningIf the resistance is> 50Ω, the buzzer sounds permanently.
If the resistance is<10Ω, the buzzer will be silent.
Resolution0.0001V
The control voltage is about3V and the measurable forward voltage drop PN
transition is about≤3V. When the buzzer is activated, a short beep indicates normal
DetailPN junction connection, continuous whistle indicates a PN junction short circuit
DetailTypical silicon PN junction voltage is about 0.5 to 0.8 V
working temperature0 ° C - 40 ° C (32 ° F - 104 ° F)
storage temperature-10 ° C - 50 ° C (14 ° F - 122 ° F)
relative humidity≤75% at 0 ° C - 30 ° C, ≤50% at 30 ° C - 40 ° C
temperature coefficient0,1x (specified accuracy) / ° C (<18 ° C or ≥28 ° C)
RF= 1V / m, total accuracy = specified accuracy + 5% of range
RF>1V / m, no specified calculation
power supplyAC 100V / 120V / 220V / 240V, 47 - 63Hz
protective fuse used for supply voltage 220 to 240V / ACT125mA / 250V
size320mm x 265mm x 110mm
safety standardIEC 61010: CAT II 600V
Detail1 Year
