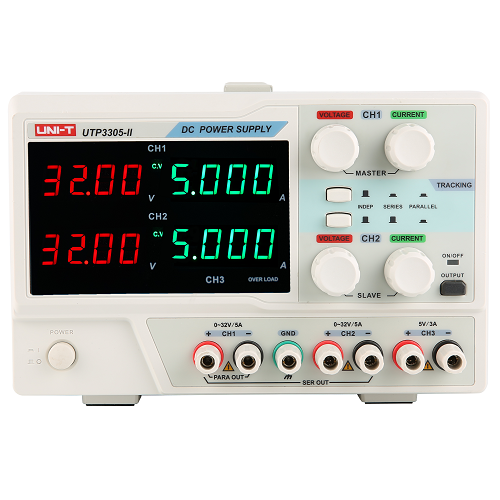

UNI-T UTP3305-II Linear DC Power Supply by UNI-T (SKU: PRD-1768587228241-uni-t-utp3305-ii-lin) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Model | UTP3305-II |
| Output voltage | CH1, CH2 0~32V, CH3 5V |
| Output current | CH1, CH2 0~5A, CH3 3A |
| Output power | 335W |
| Load regulation | CV<0.01%+3mV，CC≤0.2%+3mA |
| Ripple and noise | CV≤1mVrms; CC≤3mArms |
| Output regulate resolution CV | 10mV (typical), CC: 1mA (typical) |
| Tracking bias | ±(0.1% of reading+30mV) |
| CC | ±(0.3% of reading+10mA) |
| Reliability MTBF(e) | ≥2000hrs |
| Display mode | 4-bit voltage and current dual display |
| Detail | CH1 and CH2 master-slave tracking in series |
| Power Input voltage | 115V AC/230V AC; Frequency: 47Hz~63Hz |
| Display | 4 windows,LED |
| Detail | Product color White and grey |
| Product size (W×H×D) | 319mm×146mm×226mm |
| Product net weight | 10.5kg |
| Detail | 1 Years |
Model UTP3305-II Output voltage CH1, CH2 0~32V, CH3 5V Output current CH1, CH2 0~5A, CH3 3A Output power 335W Load regulation CV<0.01%+3mV，CC≤0.2%+3mA Ripple and noise CV≤1mVrms; CC≤3mArms Output regulate resolution CV: 10mV (typical), CC: 1mA (typical) Tracking bias ±(0.1% of reading+30mV) CC:±(0.3...
