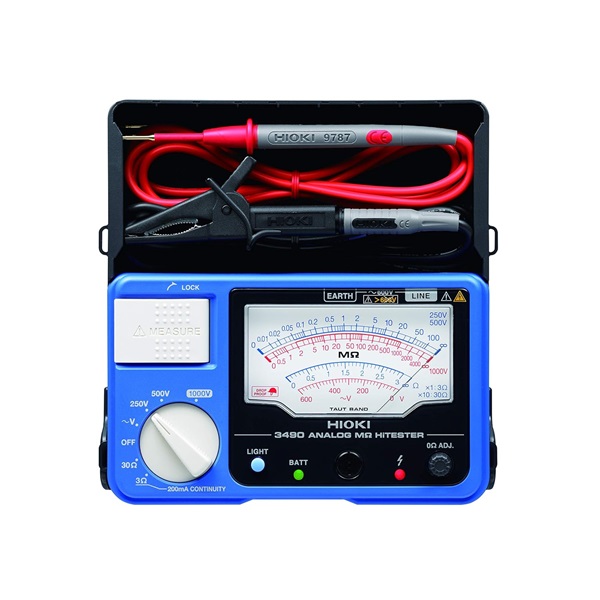

HIOKI 3490 Analog MΩ HiTester by HIOKI (SKU: PRD-1768587170986-hioki-3490-analog-mw) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Rated output voltage | 250 V DC 500 V DC 1000 V DC |
| Effective maximum indicated value | 100 MΩ 100 MΩ 4000 MΩ |
| Lower limit resistance | 0.25 MΩ 0.5 MΩ 1 MΩ |
| Overload protection | 660 V AC (10 sec.) |
| Low resistance range | 3 Ω (at 200 mA testing current), ±0.09 Ω accuracy, |
| Detail | 30 Ω (at 20 mA testing current), ±0.9 Ω accuracy, |
| Open-circuit voltage | 4.1 to 6.9 V |
| AC voltage range | 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, |
| Detail | 100 kΩ or more input resistance |
| Detail | Other functions Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge. |
| Power supply LR6 (AA) alkaline batteries ×4, Continuous use | 20 hours (at 500 V range, no load) |
| Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in)H × 53 mm (2.09 in)D, 610 g (21.5 oz), (including battery, excluding test lead) |
| Included accessories Test lead | L9787 ×1, Instruction manual ×1, Shoulder strap ×1, LR6 (AA) alkaline batteries ×4 |
| Detail | As per brand policy |
Rated output voltage 250 V DC 500 V DC 1000 V DC Effective maximum indicated value 100 MΩ 100 MΩ 4000 MΩ Lower limit resistance ...
