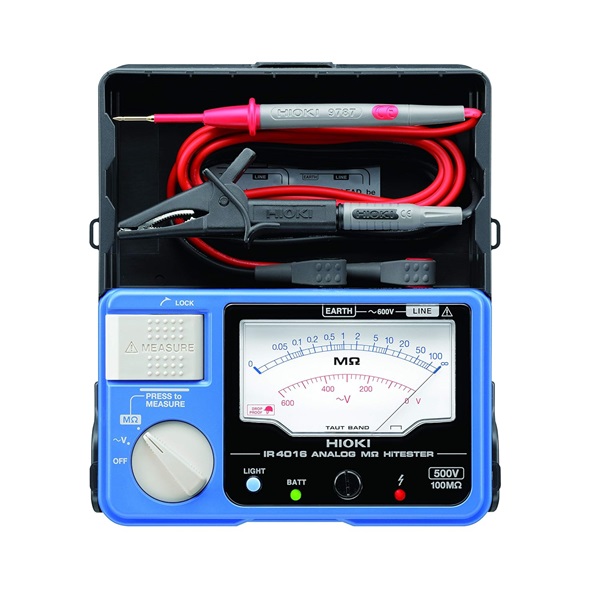

HIOKI IR4016 Analog MΩ HiTester by HIOKI (SKU: PRD-1768587170328-hioki-ir4016-analog-) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Rated output voltage | 500 V DC |
| Effective maximum indicated value | 100 MΩ. |
| Accuracy | 1st effective measuring range ±2 % of scale length, 0.1 M to 50 MΩ |
| Lower limit resistance | 0.5 MΩ (measurement resistance value to maintain testing voltage) |
| Overload protection | 600 V AC (10 sec.) |
| AC voltage range | 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, |
| Detail | 500 kΩ or more input resistance |
| Detail | Other functions Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge. |
| Power supply LR6 (AA) alkaline batteries ×4, Continuous use | 20 hours (no load) |
| Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead) |
| Included accessories Test Lead | L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1 |
| Detail | 3 Years |
Rated output voltage 500 V DC Effective maximum indicated value 100 MΩ. Accuracy 1st effective measuring range ±2 % of scale length, 0.1 M to 50 MΩ Lower limit resistance 0.5 MΩ (measurement resistance value to maintain testing voltage) Overload protection 600 V AC (1...
