Home/Insulation Tester/HTC Instruments 8252IN Insulation Tester

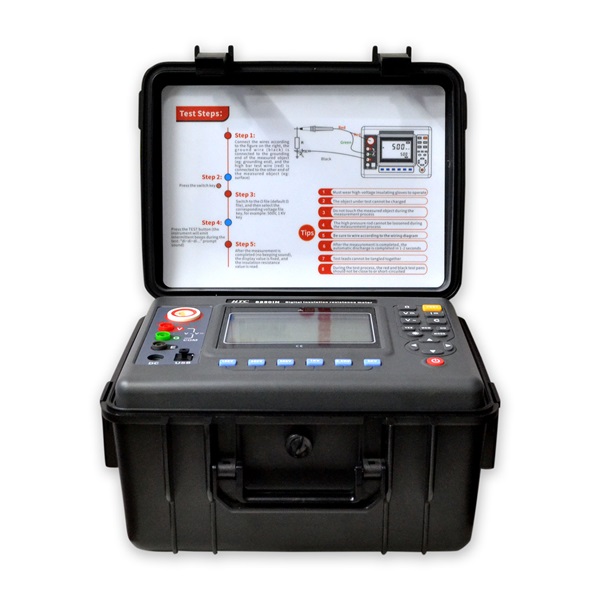

HTC Instruments 8252IN Insulation Tester - Accuracy: ±3%rdg±5dgt

HTC Instruments 8252IN Insulation Tester by HTC Instruments (SKU: PRD-1768587165837-htc-instruments-8252) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

HTC Instruments 8252IN Insulation Tester
HTC Instruments 8252IN Insulation Tester

Product Information

Description:

Model   HTC 8252 Rated applied voltage  500; 1000; 2500; 5KV; 10KV; 15KV. Resistance limit range 0.01 MΩ ~ 50TΩ Resolution 0.01MΩ Accuracy ±3%rdg±5dgt Output short-circuits current   ≥6mA Function             Insulation resistance test, voltage test, current test, capacitance test Basic condi...

Brand:HTC Instruments
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:2720g (including battery) Power Consumption Standby: 30mA Max (backlight off) | Turn on backlight: 42mA Max | Measure：200mA Max(backlight off) Insulation Resistance ≥50MΩ(between Measuring line and housing Pressure Resistance AC3kV/50Hz 1min Working Temp grams
Return Policy:7
HTC Instruments 8252IN Insulation Tester
Visit the OPTIMA CONNECT PVT. LTDHTC Instruments
₹0
10000 in stock
Model HTC 8252 Rated applied voltage 500; 1000; 2500; 5KV; 10KV; 15KV. Resistance limit range 0.01 MΩ ~ 50TΩ Resolution 0.01MΩ Accuracy ±3%rdg±5dgt Output short-circuits current ≥6mA Functi...
Quantity:
1

📋 Specifications

Model HTC8252
Rated applied voltage500; 1000; 2500; 5KV; 10KV; 15KV.
Resistance limit range0.01 MΩ ~ 50TΩ
Resolution0.01MΩ
Accuracy±3%rdg±5dgt
Output short-circuits current≥6mA
DetailFunction Insulation resistance test, voltage test, current test, capacitance test
Basic condition Basiccondition23º±5º, below 75%rh
Rated voltage (V)500V; 1000V 2500V; 5000V; 10 KV; 15KV Accuracy rated voltage x (1±10%)
Insulation resistance range (GΩ) 0.01MΩ -50TΩ Accuracy±3%rdg±5dgt Resolution: 0.01MΩ
DC voltage range 0.1~1000V Accuracy±1.5%rdg±5dgt Resolution: 0.1V
AC voltage range 0.1~750V Accuracy±1.5%rdg±5dgt Resolution: 0.1V
DC current measurement 0.01nA~6mA Accuracy±5%rdg±5dgt Resolution: 0.01nA
Capacitance test 10nF~60uF Accuracy±10%rdg±5dgt Resolution: 10nF
DetailAbsorption ratio and polarization index measurement power Have
Instrument weight2720g (including battery)
Power Consumption Standby30mA Max (backlight off) | Turn on backlight: 42mA Max | Measure：200mA Max(backlight off)
Insulation Resistance≥50MΩ(between Measuring line and housing
Pressure ResistanceAC3kV/50Hz 1min
Working Temp. and Humidity-10%ºC+50ºC＜85%RH
Storage Temp. and Humidity-10%ºC+55ºC＜90%RH
DetailSuitable for Safety Regulations Suitable for Safety Regulations
Detail1 Year
