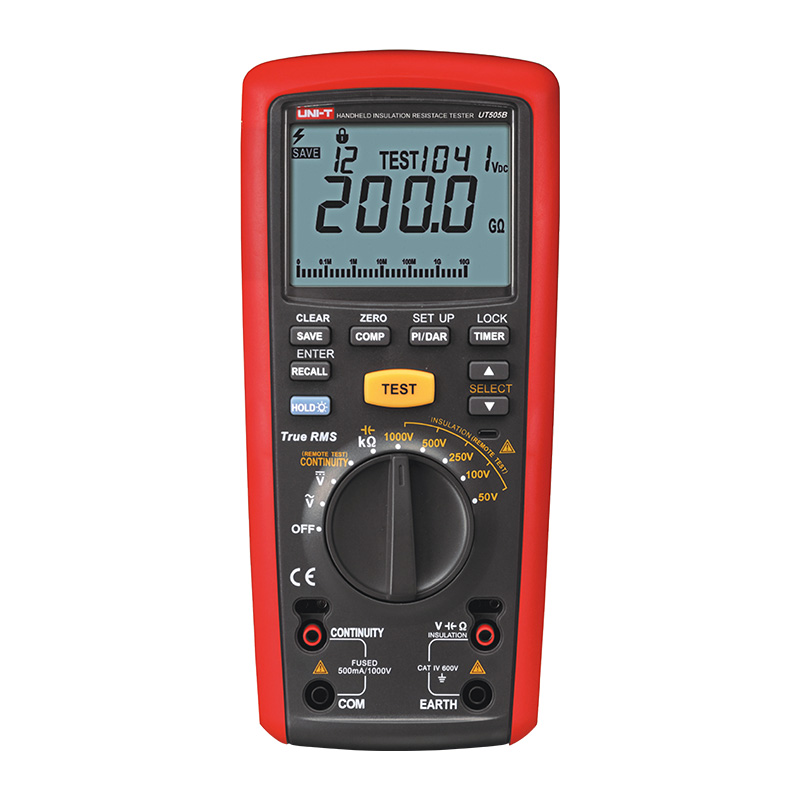

Home/Insulation Tester/UNI-T UT505B Insulation Meter- 1 Kv 200GΩ

UNI-T UT505B Insulation Meter- 1 Kv 200GΩ (Insulation Tester) - Power: 1.5V battery (LR6) x  6

UNI-T UT505B Insulation Meter- 1 Kv 200GΩ by UNI-T (SKU: PRD-1768587178994-uni-t-ut505b-insulat) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

UNI-T UT505B Insulation Meter- 1 Kv 200GΩ
UNI-T UT505B Insulation Meter- 1 Kv 200GΩ

Product Information

Description:

Specifications Range UT505B Insulation resistance (Ω)  50V 50V/100V/250V/500V/1000V 0%~20% 0.01MΩ~50MΩ ±(3%+3) 50MΩ~1GΩ ±(3%+3) 100V 1GΩ~10GΩ ±(10%+3) 0.01MΩ~100MΩ ±(3%+3) 100MΩ~1GΩ ±(3%+3) 250V 1GΩ~20...

Brand:UNI-T
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:630g grams
Dimensions:103mm x 225mm x 59mm
Return Policy:7
Packing Standard:Batteries, test leads, test probes, alligator clips, remote test lead (UT505B only)
UNI-T UT505B Insulation Meter- 1 Kv 200GΩ
Visit the OPTIMA CONNECT PVT. LTDUNI-T
₹45,000
₹28,35037% OFF
10000 in stock
Specifications Range UT505B Insulation resistance (Ω) 50V 50V/100V/250V/500V/1000V 0%~20% 0.01MΩ~50MΩ ±(3%+3) 50MΩ~1GΩ ±(3%+3) 100V 1GΩ~10G...
Quantity:
505

📋 Specifications

Detail1 Year
SpecificationsUT505B
Insulation resistance (Ω)0%~20%
0.01MΩ~50MΩ±(3%+3)
50MΩ~1GΩ±(3%+3)
100V±(10%+3)
0.01MΩ~100MΩ±(3%+3)
100MΩ~1GΩ±(3%+3)
250V±(10%+3)
0.01MΩ~200MΩ±(1.5%+5)
200MΩ~1GΩ±(1.5%+5)
500V±(10%+3)
0.01MΩ~500MΩ±(1.5%+5)
500MΩ~1GΩ±(1.5%+5)
1000V±(10%+3)
0.1MΩ~2000MΩ±(1.5%+5)
2GΩ~9.9GΩ±(5%+3)
10GΩ~20GΩ±(7%+3)
20GΩ~200GΩ±(20%+3)
Load current0%~10%
100V (R=100kΩ) 1mA0%~10%
250V (R=250kΩ) 1mA0%~10%
500V (R=500kΩ) 1mA0%~10%
1000V (R=1MΩ) 1mA0%~10%
Short circuit current<2mA
Leakage current (A)±(10%+3)
0.01Ω~100Ω (about 5V/>200mA/20mA optional)±(1.5%+3)
General resistance (Ω)±(3%+3)
DC voltage (V)±(2%+3)
AC voltage (V)±(1.5%+5)
Frequency (Hz)±(0.1%+3)
Capacitance (F)±(5%+5)
Display count6000
Auto range/True RMS√
Step voltage√
DAR√
PI/Timing measurement√
Auto discharge√
Auto fuse check√
Analog bar graph√
Continuity buzzer√
Comparison measurement√
Low battery indication√
Power1.5V battery (LR6) x  6
Display78mm x 59mm
Product colorRed and grey
Product net weight630g
Product size103mm x 225mm x 59mm
Standard accessoriesBatteries, test leads, test probes, alligator clips, remote test lead (UT505B only)
Standard individual packingCarrying bag, gift box, English manual

Product Information

Description:

Specifications Range UT505B Insulation resistance (Ω)  50V 50V/100V/250V/500V/1000V 0%~20% 0.01MΩ~50MΩ ±(3%+3) 50MΩ~1GΩ ±(3%+3) 100V 1GΩ~10GΩ ±(10%+3) 0.01MΩ~100MΩ ±(3%+3) 100MΩ~1GΩ ±(3%+3) 250V 1GΩ~20...

Brand:UNI-T
Seller:OPTIMA CONNECT PVT. LTD

Warranty

Warranty as per brand

Original Products

100% Original Products

Secure Payments

Secure payments

Buyer Protection

100% Buyer protection

Top Brands

Top Brands

OPTIMA CONNECT PVT. LTD

OPTIMA CONNECT PVT. LTD

Where Technology Meets Trust.

👥 0 followers

Optimaconnect Pvt. Ltd. is an e-commerce and retail company engaged in selling electronic and hardware products through both online and offline channels. The company focuses on delivering quality tech...

📍 Location: N/A

⭐ Rating: N/A

Related Products

Kyoritsu KEW 3005A Digital Insulation Tester

Kyoritsu KEW 3005A Digital Insulation Tester

Kyoritsu

Insulation Tester

₹36,510
In Stock
Kyoritsu KEW 3125A High Voltage Insulation Tester

Kyoritsu KEW 3125A High Voltage Insulation Tester

Kyoritsu

Insulation Tester

₹1,20,000
In Stock
CIE 444 Insulation Tester -5000V, 0-20000 MOhm

CIE 444 Insulation Tester -5000V, 0-20000 MOhm

CIE

Insulation Tester

₹13,500
In Stock
CIE 444 Insulation Tester -2500V, 0-10000 MOhm

CIE 444 Insulation Tester -2500V, 0-10000 MOhm

CIE

Insulation Tester

₹10,650
In Stock
HTC Instruments HTC 8250IN Insulation Tester

HTC Instruments HTC 8250IN Insulation Tester

HTC Instruments

Insulation Tester

₹53,000
In Stock
CIE 444 Insulation Tester -1000V, 0-100 MOhm

CIE 444 Insulation Tester -1000V, 0-100 MOhm

CIE

Insulation Tester

₹8,500
In Stock

Product Key Takeaway & AI Summary

The UNI-T UT505B Insulation Meter- 1 Kv 200GΩ is a professional-grade insulation tester product manufactured by UNI-T. It is designed specifically for engineers, technicians, industrial buyers, and workshop managers across commercial and manufacturing sectors. Key details: Specifications Range UT505B Insulation resistance (Ω) 50V 50V/100V/250V/500V/1000V 0%~20% 0.01MΩ~50MΩ ±(3%+3) 50MΩ~1GΩ ±(3%+3) 100V 1GΩ~10G...
