Home/Oscilloscope/Hantek DPO7504E Mixed Signal Oscillosope, 500MHz 4 Channel Oscilloscope

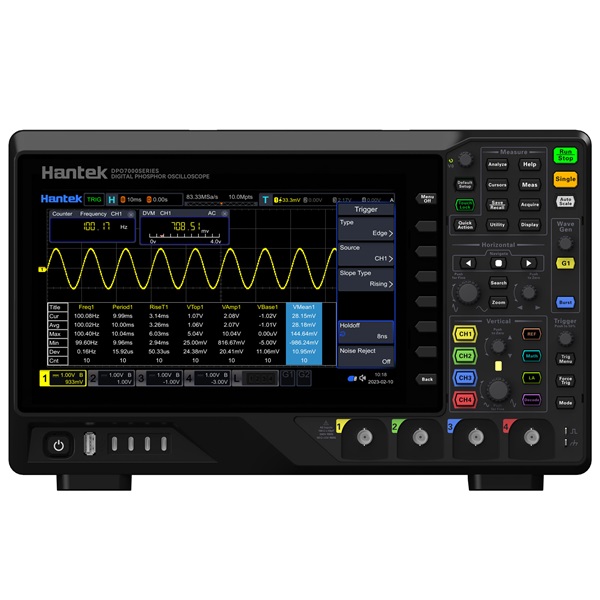

Hantek DPO7504E Mixed Signal Oscillosope, 500MHz 4 Channel Oscilloscope

Hantek DPO7504E Mixed Signal Oscillosope, 500MHz 4 Channel Oscilloscope by Hantek (SKU: PRD-1768587196107-hantek-dpo7504e-mixe) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

Hantek DPO7504E Mixed Signal Oscillosope, 500MHz 4 Channel Oscilloscope
Hantek DPO7504E Mixed Signal Oscillosope, 500MHz 4 Channel Oscilloscope

Product Information

Description:

Model DPO7504E Channel 4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer Bandwidth 500MHz Real-time Sampling Rate 2GSa/s single channel, 1GSa/s half channel, 1GSa/s all channel Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), ...

Brand:Hantek
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
0
Return Policy:7
Hantek DPO7504E Mixed Signal Oscillosope, 500MHz 4 Channel Oscilloscope
Visit the OPTIMA CONNECT PVT. LTDHantek
₹0
10000 in stock
Model DPO7504E Channel 4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer Bandwidth 500MHz Real-time Sampling Rate 2GSa/s single channel, 1GSa/s half channel, 1GSa/s all...
Quantity:
1

📋 Specifications

ModelDPO7504E
Channel4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth500MHz
Real-time Sampling Rate2GSa/s single channel, 1GSa/s half channel, 1GSa/s all channel
Memory Depth2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate500,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution8 bit
Vertical Sensitivity 1 MΩ500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range500ps/div~1ks/div
Time Base Accuracy±1 ppm ± 1 ppm/year
Bandwidth limitation20 MHz, 100MHz, 200MHz, 350MHz；Independent optional for each channel
DetailTrigger Type Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I2C
Bus and DecodingRS232, I2C, SPI, LIN, CAN
Automatic Measurement51 kinds of parameter measurement, supporting statistics and analysis
DetailAnalysis Function Frequency meter, digital voltmeter, power analysis, histogram, search, navigation, history, baud chart
Hardware Recording and Playback More than2 million frames (single channel)
DetailInput Coupling DC, AC or GND
Input Impedance and Capacitance1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Digital Channel16CH, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； optionHDMI, serial port
Screen10.1-inch multi-touch capacitive screen, 256 level waveform grayscale display, with colour afterglow
Detail3 Year

Product Information

Description:

Model DPO7504E Channel 4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer Bandwidth 500MHz Real-time Sampling Rate 2GSa/s single channel, 1GSa/s half channel, 1GSa/s all channel Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), ...

Brand:Hantek
Seller:OPTIMA CONNECT PVT. LTD
