Home/Oscilloscope/OWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 Channel

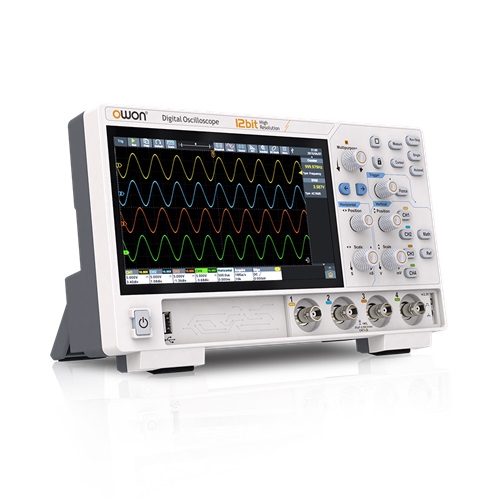

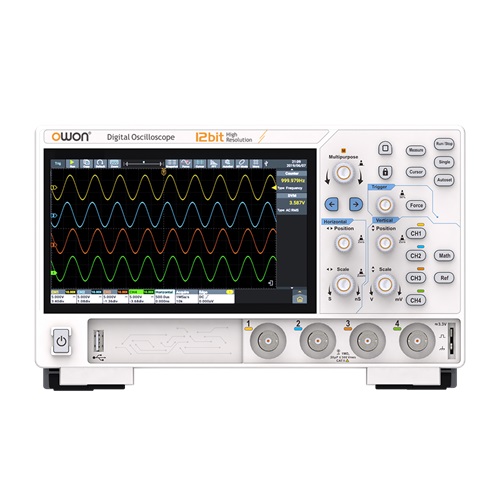

OWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 Channel

OWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 Channel by OWON (SKU: PRD-1768587185633-owon-ads814a-12bits-) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

OWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 Channel
OWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 ChannelOWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 Channel

Product Information

Description:

Bandwidth（-3 dB） 70MHz Channel 4 Max. sample rate 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel） Acquire mode DC Gain Accuracy Max. waveform capture rate Max memory depth Vertical Sensitivity Range Vertical resolution Sampling rate range Relay time accuracy Input Imp...

Brand:OWON
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:≈1 grams
Return Policy:7
OWON ADS814A 12bits Digital Oscilloscope- 100 Mhz 4 Channel
Visit the OPTIMA CONNECT PVT. LTDOWON
₹45,000
₹39,15013% OFF
10000 in stock
Bandwidth（-3 dB） 70MHz Channel 4 Max. sample rate 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel） Acquire mode DC Gain Accuracy Max. waveform capture rate Max memory depth...
Quantity:
1

📋 Specifications

DetailBandwidth（-3 dB） 70MHz
Channel4
Max. sample rate1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel）
DetailAcquire mode DC Gain Accuracy
DetailMax. waveform capture rate Max memory depth
DetailVertical Sensitivity Range Vertical resolution
DetailSampling rate range Relay time accuracy
Input Impedance1 MΩ±2%, parallel with 20 pF±5 pF
Probe Attenuation Coefficient1.00μX-1.00MX, step by 1-2-5, support custom
DetailTrigger type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN
Bus decodingRS232/UART、I2C、SPI、CAN、LIN
DetailPhase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), FRR(A↑-B↑),
DetailFRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓),
DetailLFR(A↓-B↑), LFF(A↓-B↓）
Frequency counter6-digit frequency counter.
7-Maximum frequencymaximum analog bandwidth of oscilloscope
Voltmeter Support DC, AC+DCrms, ACrms. Resolution4 digits (ACV/DCV)
DetailCommunication Interface HDMI, USB device, USB Host, Trig Out(P/F), LAN
Display7 inch (1024×600), capacitive multi-touch screen
DetailPower supply interface Type-C [1]
Dimension (Wx H x D) 260mm x 160mm x 78mm
Weight≈1.5kg（package excluded）
DetailAs per Brand policy
