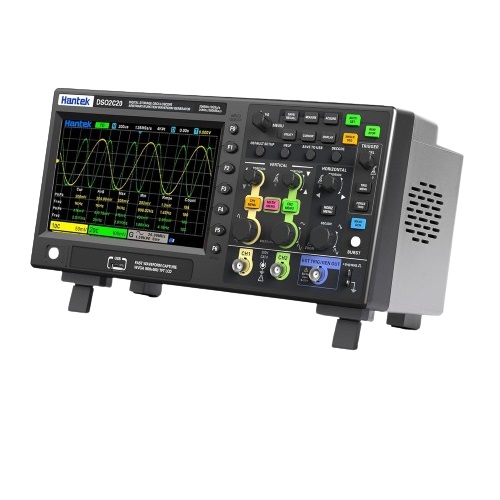

Hantek DSO2C20 Digital Oscilloscope 200MHz, 2 Channels by Hantek (SKU: PRD-1768587195203-hantek-dso2c20-digit) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Model | DSO2C20 |
| Analog Bandwidth | 200MHz |
| Rising Time (typical) | ≤1.75ns |
| No. of Input/Output Channels | 2 analog channel inputs; 1 signal generator channel output (DSO2D20 series) |
| EXT Channel Input | 1 EXT channel input |
| Detail | Sampling Mode Real-time sampling |
| Max. Sample Rate of Analog Channel | 2GSa/s (single-channel)，1GSa/s (all channels) |
| Max. Memory Depth | 80Kpts (single-channel)，40Kpts (all channels) |
| Detail | Peak Detection Under all the time base settings, capture 1ns glitches |
| LCD Size and Type | 7-inch capacitive multi-touch screen |
| Display Resolution | 800 × 480 |
| Detail | Vertical System Analog Channel |
| Detail | Input Coupling DC, AC, GND |
| Input Impedance | 1MΩ±1%，50Ω±1% |
| Input Capacitance | 17pF±3pF |
| Maximum Input Voltage | 1MΩ CAT I 300 VRMS，400 Vpk |
| Detail | 50Ω 5VRMS |
| Vertical Resolution | 8bit |
| Vertical Sensitivity Range | 1MΩ 500uV/div ~ 10V/div |
| Detail | 50Ω 500uV/div ~ 1V/div |
| Offset Range | 1MΩ ±1V (500uV/div ~ 50 mV/div) |
| Detail | ±10V(100mV/div ~ 500 mV/div) |
| Detail | ±100 V (1V/div ~ 10 V/div) |
| Detail | 50Ω ±1V(500uV/div ~ 50 mV/div) |
| Detail | ±100V(1 V/div ) |
| Dynamic Range | ±5div ( 8bit ) |
| Bandwidth Limit (Typical) | 20MHz,100MHz,200MHz,350MHz; selectable for each channel |
| DC Gain Accuracy | ±3%FullScale |
| DC Offset Accuracy | <200mV/div (±0.1div±2mV±1.5%of offset value) |
| Detail | >200mV/div (±0.1div±2mV±1.0%of offset value) |
| Channel-to-Channel Isolation | 40dB, from DC to maximum rated bandwidth of each model |
| Detail | Horizontal System--Analog Channel |
| Range of Time Base | 2ns/div~1ks/div |
| Time Base Accuracy | ±50ppm |
| Time Interval (△T) | Measurement±(1 sample interval)±(50ppm××readout)±50ps |
| Detail | Horizontal Mode YT Default |
| XY | X1 = Channel1，Y1 = Channel2 |
| SCAN Time | base≥100ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob |
| ROLL Time | base≥100ms/div, available to enter or exit ROLL mode through HORIZ MENU menu |
| Detail | Arbitrary Waveform Generator |
| Sample Rate | 200MSa/s |
| Vertical Resolution | 12bit |
| Max. Frequency | 25MHz |
| Detail | Standard Waveform Sine, Square, Ramp, Exp, Noise, DC |
| Arb | Arb1, Abr2, Arb3, Arb4 |
| Waveform Length | 4K |
| Output Impedance | 50Ω ± 1% |
| Detail | As per Brand policy |
Model DSO2C20 Analog Bandwidth 200MHz Rising Time (typical) ≤1.75ns No. of Input/Output Channels 2 analog channel inputs; 1 signal generator channel output (DSO2D20 series) EXT Channel Input 1 EXT channel input Sampling Mode Real-time sampling Max. Sample ...
