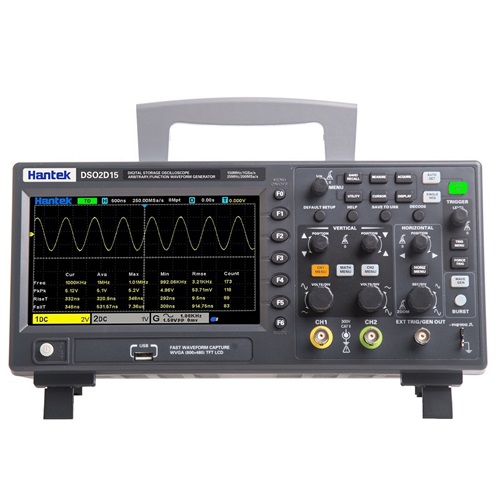

Hantek DSO2D15 Oscilloscope, 150 Mhz 2 Channel+ 1 Channel by Hantek (SKU: PRD-1768587185150-hantek-dso2d15-oscil) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Model | DSO2D15 |
| Bandwidth | 150MHz |
| Oscilloscope channels | 2CH |
| Waveform generator | - 1CH |
| Detail | Oscilloscope |
| Sample rate | 1GSa/s (single channel) 500MSa/s (two channels) |
| Detail | Acquisition |
| Detail | Normal Sample data |
| Detail | Peak-to-peak value Display high frequency and random burr |
| Average Average waveform, times | 4, 8, 16, 32, 64, 128 |
| High resolution Up to | 12bit |
| Detail | Input coupling DC, AC, GND |
| Input impedance | 1MΩ±2% ‖20pF±3pF. |
| Probe attenuation factor | 1X, 10X, 100X, 1000X |
| Voltage rating | 300V CAT II |
| Maximum input voltage | 300VRMS (10X) |
| Detail | Horizontal |
| Detail | Waveform interpolation (sin x)/x |
| Maximum record length Single channel maximum | 8M |
| Two channels maximum | 4M |
| Horizontal scale range | 2ns/div~100s/div 1, 2, 5 step by step |
| Detail | Time base mode Y-T, X-Y, Roll |
| Zero offset | ±0.5 div×minimum time base gear |
| Sample Rate and Delay Time Accuracy | ±25ppm |
| Sample Rate and Delay Time Accuracy | ±50ppm（at any interval greater than 1ms） |
| Detail | Vertical |
| Rising time in BNC position (typical) | 2.4ns |
| Vertical resolution | 8 bits resolution, each channel samples simultaneously |
| Vertical sensitivity | 2mV/div to 10V/div |
| Offset range ≥ | 200mV/div, ±1V; |
| Detail | ＜200mV/div ±50V |
| Mathematical operation +, | -, ×, ÷, FFT |
| FFT Window | Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop |
| Bandwidth Limit | 20MHz |
| Detail | Bass response（-3db） In BNC position ≤ 10Hz |
| Detail | Vertical gain accuracy In ''normal'‘ or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3% |
| Detail | In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% |
Model DSO2D15 Bandwidth 150MHz Oscilloscope channels 2CH Waveform generator - 1CH Oscilloscope Sample rate 1GSa/s (single channel) 500MSa/s (two channels) Acquisition Normal Sample data Peak-to-peak value Display high frequency and random burr Average Average wave...
