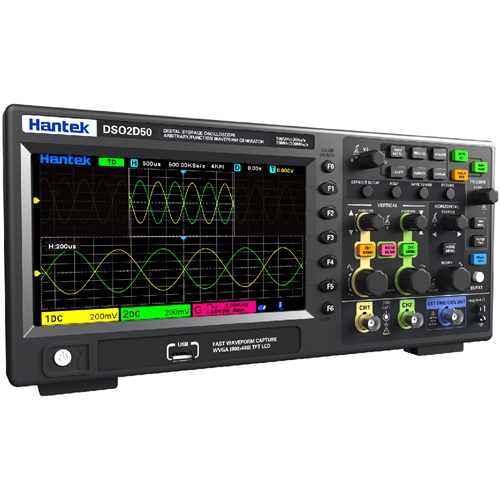

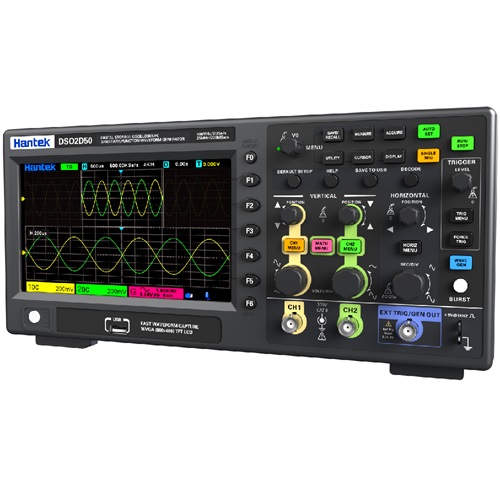

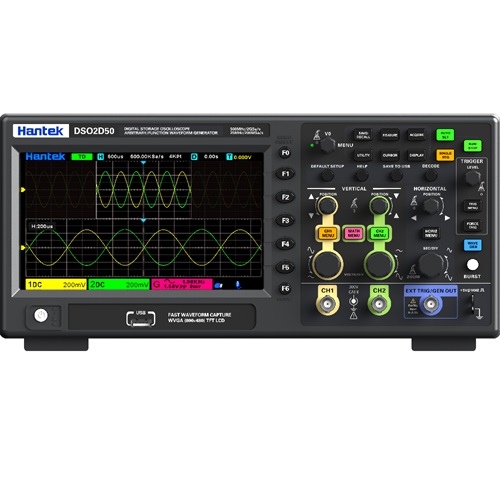

Hantek DSO2D50 Digital Storage Oscilloscopes 500MHz Bandwidth 2CH Dual Channel by Hantek (SKU: PRD-1768587197648-hantek-dso2d50-digit) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Model | DSO2D50 |
| Analog Bandwidth | 500MHz |
| Rising Time (typical) | ≤700ps |
| No. of Input/Output Channels | 2 analog channel inputs; 1 signal generator channel output (DSO2D20 series) |
| EXT Channel Input | 1 EXT channel input |
| Detail | Waveform Generator |
| Detail | Sampling Mode Real-time sampling |
| Max. Sample Rate of Analog Channel | 2GSa/s (single-channel)，1GSa/s (all channels) |
| Max. Memory Depth | 80Kpts (single-channel)，40Kpts (all channels) |
| Detail | Peak Detection Under all the time base settings, capture 1ns glitches |
| LCD Size and Type | 7-inch |
| Display Resolution | 800 × 480 |
| Detail | Vertical System Analog Channel |
| Detail | Input Coupling DC, AC, GND |
| Input Impedance | 1MΩ±1%，50Ω±1% |
| Input Capacitance | 17pF±3pF |
| Dynamic Range | ±5div ( 8bit ) |
| DC Gain Accuracy | ±3%FullScale |
| DC Offset Accuracy | <200mV/div (±0.1div±2mV±1.5%of offset value) |
| Detail | >200mV/div (±0.1div±2mV±1.0%of offset value) |
| Channel-to-Channel Isolation | 40dB, from DC to maximum rated bandwidth of each model |
| Detail | 1 Year |
Model DSO2D50 Analog Bandwidth 500MHz Rising Time (typical) ≤700ps No. of Input/Output Channels 2 analog channel inputs; 1 signal generator channel output (DSO2D20 series) EXT Channel Input 1 EXT channel input Waveform Generator Sampling Mode ...
