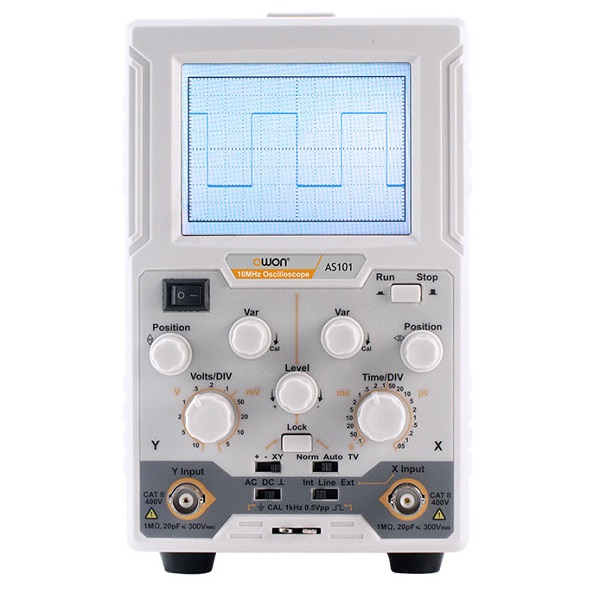

OWON AS101/MTQ 1016B Analogue Oscilloscope- 10 MHz 1 Channel by OWON (SKU: PRD-1768587189901-owon-as101mtq-1016b-) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Bandwidth | DC:0~10MHz,, AC: 10 Hz~10MHz |
| Channel | 1 |
| Sample Rate | 100MS/s |
| Interpolation | (Sinx)/x |
| Scanning speed (S/DIV) | 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5 |
| relay time accuracy | ±100 ppm |
| Trimming Ratio | ≧2.5:1 |
| Sensitivity | 5 mV/DIV～10 V/DIV |
| Displacement | ±10DIV |
| Low Frequency | ≥10 Hz (at input, AC coupling, -3 dB) |
| Rise time (at input, Typical) | ≤ 30 ns |
| Input coupling | DC, AC , Ground |
| Input impedance | 1 MΩ±2%, in parallel with 20 pF±5 pF |
| Max. input voltage | 400V (DC+AC, PK - PK) |
| Detail | X-Y Model |
| Sensitivity | X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV |
| Bandwidth(-3dB) | DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz |
| Trigger | Trigger level range ±4 DIV from the screen center |
| Trigger level Accuracy (typical) | ±0.3 DIV |
| Trigger Sources | Int, Line, Ext |
| Trigger Mode | Norm, AUTO, TV |
| Edge trigger | Rising, Falling |
| Video Trigger | Support standard NTSC, PAL and SECAM broadcast systems |
| Sample Rate / Relay Time | ±100ppm |
| Detail | Trigger lock support |
| Detail | Ext. Trigger Input Impedance |
| Output Voltage (Typical) | Square, 0.5Vpp±2% |
| Frequency (Typical) | Square wave of 1 kHz(±1%) |
| Display | 3.7" Colored LCD (Liquid Crystal Display) |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Power Consumption | ＜15W |
| Detail | 1 Year |
Bandwidth: DC:0~10MHz,, AC: 10 Hz~10MHz Channel: 1 Horizontal system: Sample Rate: 100MS/s Interpolation: (Sinx)/x Scanning speed (S/DIV): 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5 relay time accuracy: ±100 ppm Trimming Ratio: ≧2.5:1 Vertical system: Sensitivity: 5 mV/DIV～10 V/DIV Displacement: ±10DI...
