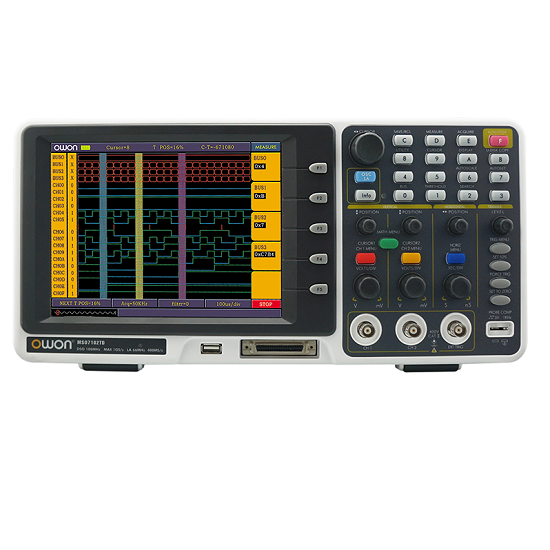

OWON MSO 7062TD Series Mixed Signal Oscilloscope (MSO) by OWON (SKU: PRD-1768587198653-owon-mso-7062td-seri) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Bandwidth | 60MHz |
| Sample Rate (realtime) | 1GS/s |
| Display | 8.0'' color LCD ,640 × 480 pixels |
| Detail | Channel dual + external trigger |
| Horizontal Scale (s/div) | 2ns/div～100s/div, step by 1～2～5 1ns/div～100s/div, |
| step by | 1～2～5 |
| Vertical Sensitivity | 2mV/div - 10V/div |
| Vertical Resolution (A/D) | 8bits (2 channels simultaneously) |
| Detail | Trigger Mode Edge, Video, Alternate, Pulse, and Slope |
| Detail | Acquisition Mode Normal,Peak Detect,and Average |
| Record Length | 2M points |
| Waveform Storage | 4 waveforms |
| Detail | Waveform Math ＋, －, ×, ÷, invert, FFT |
| Battery | 7.4V 8000mAh (optional) |
| Dimensions (W | × H × D) 370 × 180 × 120 (mm) |
| Weight (without | package) 2.20 kg |
| Detail | Logic Analyzer Performance Specifications |
| Model | MSO7062TD |
| Sample Rate (real | time) 20S/s - 2GS/s |
| Bandwidth | 100MHz |
| Channel | 16 |
| Record Length | 4M points |
| Detail | As per Owon's Policy |
- Bandwidth 60MHz - Sample Rate (realtime) 1GS/s - Display 8.0'' color LCD ,640 × 480 pixels - Channel dual + external trigger - Horizontal Scale (s/div) 2ns/div～100s/div, step by 1～2～5 1ns/div～100s/div, - step by 1～2～5 - Vertical Sensitivity 2mV/div - 10V/div - Vertical Resolution (A/D) 8bits (2 ch...
