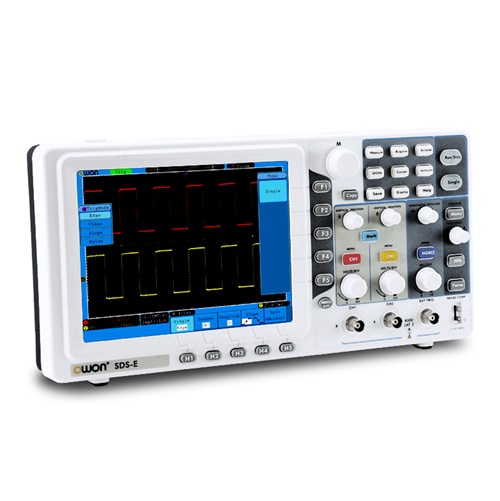

OWON SDS-5032E 30 MHz Digital Storage Oscilloscope (DSO) by OWON (SKU: PRD-1768587180620-owon-sds-5032e-30-mh) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Bandwidth | 30MHz |
| Sample rate | 250MS/s |
| Horizontal Scale(S/div) | 4ns/div~100s/div, step by 1~2~4 |
| Rise time (at input, typical) | ≤14ns |
| Channels | 2+1 (External) |
| Display | 8" color LCD, TFT display , 800*600 pixels, 65535 colors |
| Input impedance | 1MΩ±2%i n parallel with 15pF±5pF |
| Channels Isolation | 50Hz: 100 : 1, 10MHz: 40 : 1 |
| Max. input voltage | 400V (PK-PK) DC + AC PK-PK |
| DC gain accuracy | ±3% |
| DC accuracy(Average) | Average≥16:±(3% reading+0.05div) for ΔV |
| Probe attenuation factor | 1X10X100X1000 |
| LF respond(AC, -3dB) | ≥5Hz(at input, AC coupling, -3dB) |
| Record length | Max.10M points for each channel |
| Sampling rate/relay time accuracy | ±1000ppm |
| Interpolation | (sin x)/x |
| Interval(ΔT) accuracy (full bandwidth) | Single: ±(1 interval time+100ppm×reading+0.6ns) Average>16:±(1 interval time+100ppm×reading+0.4ns) |
| Input coupling | DC, AC, GND |
| Vertical resolution (A/D) | 8 bits resolution (2 Channels simultaneously) |
| Vertical sensitivity | 5mV/div,10V/div(at input) |
| Trigger type | Edge, Pulse, Video, Slope |
| Trigger mode | Auto, Normal, Single |
| Trigger level | ±6 divisions from screen center |
| Line/field frequency(Video) | Support standard NTSCPAL and SECAM broadcast systems |
| Cursor measurement | ΔV and ΔT between cursors |
| Waveform Math | ×, ÷, FFT |
| Waveform storage | 15 waveforms |
| Communication interface | USB2.0, USB flash disk storage, LAN VGA (Optional),Pass/Fail |
| Power supply | 100V-240V AC, 50/60Hz, CATII |
| Power consumption | <18W |
| Fuse | 2A, T class, 250V |
| Detail | 1 Year |
- Bandwidth : 30MHz - Sample rate : 250MS/s - Horizontal Scale(S/div): 4ns/div~100s/div, step by 1~2~4 - Rise time (at input, typical): ≤14ns - Channels: 2+1 (External) - Display: 8" color LCD, TFT display , 800*600 pixels, 65535 colors - Input impedance: 1MΩ±2%i n parallel with 15pF±5pF - Channels ...
