Home/Oscilloscope/OWON SDS1022 Digital Storage Oscilloscope (DSO)

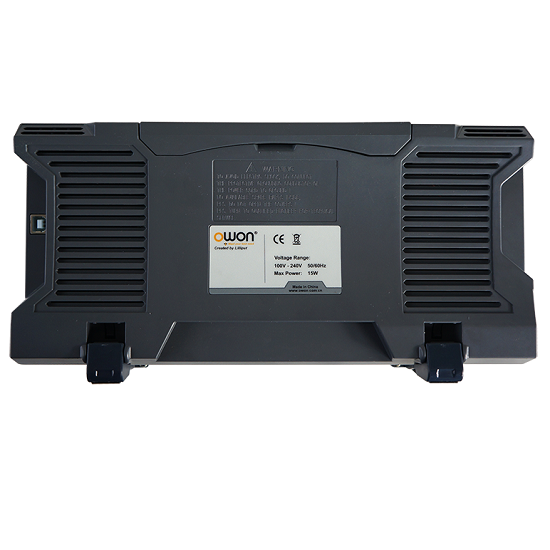

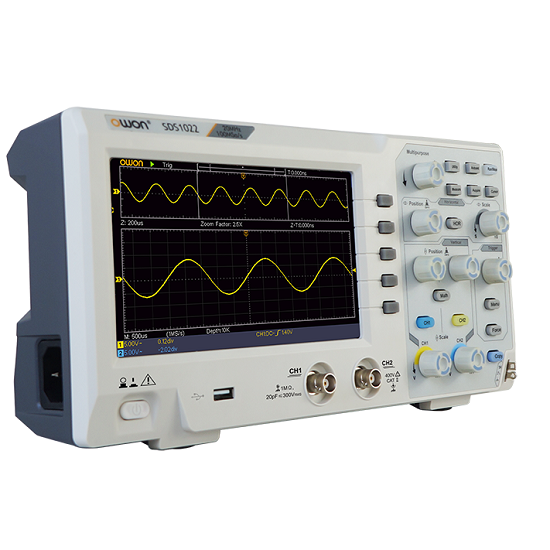

OWON SDS1022 Digital Storage Oscilloscope (DSO)

OWON SDS1022 Digital Storage Oscilloscope (DSO) by OWON (SKU: PRD-1768587185912-owon-sds1022-digital) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

OWON SDS1022 Digital Storage Oscilloscope (DSO)
OWON SDS1022 Digital Storage Oscilloscope (DSO)OWON SDS1022 Digital Storage Oscilloscope (DSO)

Product Information

Description:

Bandwidth: 20 MHz 2-Channel Sample rate: 100MS/s Input Impedance: 1MΩ ± 2%, in parallel with 20pF±5pF 7 inch LCD display 301 x 152 x 70 mm SCPI, and LabVIEW supported Power Supply: 100V - 240V AC, 50/60Hz, CAT Ⅱ input Coupling DC, AC , and GND Vertical Resolution (A/D) 8 bits (2 channels simultaneou...

Brand:OWON
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:1 grams
Dimensions:20 MHz
Return Policy:7
OWON SDS1022 Digital Storage Oscilloscope (DSO)
Visit the OPTIMA CONNECT PVT. LTDOWON
₹21,000
₹14,49031% OFF
10000 in stock
Bandwidth: 20 MHz 2-Channel Sample rate: 100MS/s Input Impedance: 1MΩ ± 2%, in parallel with 20pF±5pF 7 inch LCD display 301 x 152 x 70 mm SCPI, and LabVIEW supported Power Supply: 100V - 240V AC, 50/...
Quantity:
1

📋 Specifications

Bandwidth20 MHz
Detail2-Channel
Sample rate100MS/s
Input Impedance1MΩ ± 2%, in parallel with 20pF±5pF
Detail7 inch LCD display
Detail301 x 152 x 70 mm
DetailSCPI, and LabVIEW supported
Power Supply100V - 240V AC, 50/60Hz, CAT Ⅱ
Detailinput Coupling DC, AC , and GND
Vertical Resolution (A/D)8 bits (2 channels simultaneously)
Vertical Sensitivity5mV/div - 5V/div (at input)
DetailTrigger Type Edge, Video
DetailTrigger Mode Auto, Normal, and Single
DetailWaveform Math ＋, －, x, ÷, invert, FFT
Fuse2A, T class, 250V
Dimension (Wx H x D) 301 x 152 x 70 mm
Device Weight1.10 kg
As Per Owon's Warranty Policy1 Year
