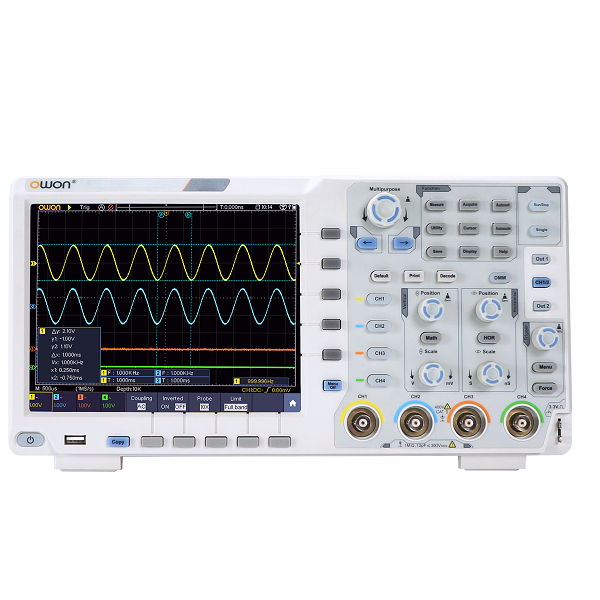

OWON XDS 3204E Digital Oscilloscope- 4 Channel, 200 Mhz by OWON (SKU: PRD-1768587190388-owon-xds-3204e-digit) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.
| Detail | 1 Year |
| Bandwidth | 200MHz |
| Sample Rate | 1GS/s (500MS/s for each channel) |
| Vertical Resolution (A/D)) | 8 bits |
| Record length | 40M |
| Waveform Refresh Rate | 70,000 wfms/s |
| Horizontal Scale (s/div)) | 1ns/div - 1000s/div, step by 1 - 2 - 5 |
| Channel | 4 |
| Display | 8" color LCD, 800 x 600 pixels display |
| Sample Rate / Relay Time Accuracy | ±2.5 ppm |
| Input Coupling | DC, AC, GND |
| Vertical Sensitivity | 1mV/div - 10V/div (at input) |
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, |
| Bus Decoding(optional) | I2C, SPI, RS232, CAN |
| Trigger Mode | Auto, Normal, and Single |
| Vertical Range | ±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div) |
| Waveform Math | +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function |
| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN |
| Frequency Counter | available |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Fuse | 2A, T class, 250V |
| Battery (optional) | 3.7V, 13200mA |
| Dimension (W x H x D) | 340mmx177mmx90mm |
Bandwidth 200MHz Sample Rate 1GS/s (500MS/s for each channel) Vertical Resolution (A/D)) 8 bits Record length 40M Waveform Refresh Rate 70,000 wfms/s Horizontal Scale (s/div)) 1ns/div - 1000s/div, step by 1 - 2 - 5 Channel 4 ...
