Home/Oscilloscope/OWON XDS4502 Digital Oscilloscope- 500MHz 2 Channel

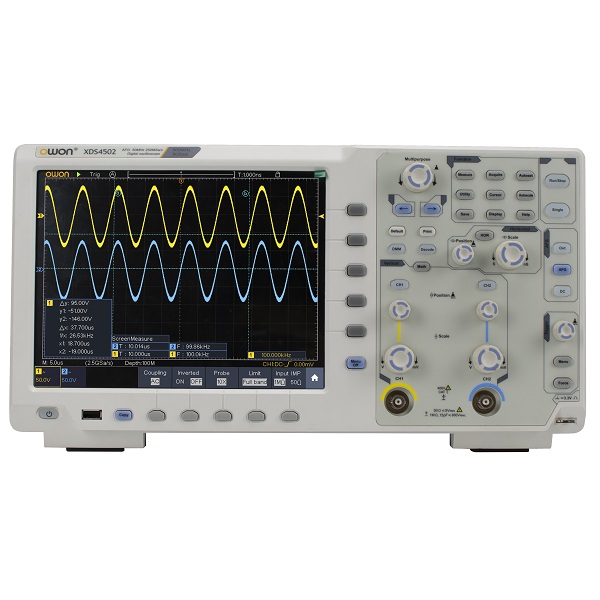

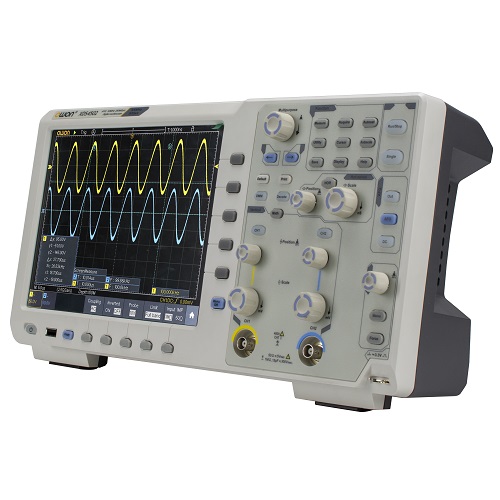

OWON XDS4502 Digital Oscilloscope- 500MHz 2 Channel

OWON XDS4502 Digital Oscilloscope- 500MHz 2 Channel by OWON (SKU: PRD-1768587188500-owon-xds4502-digital) — Verified genuine industrial tool available on IndustryGuru with fast dispatch across India.

OWON XDS4502 Digital Oscilloscope- 500MHz 2 Channel
OWON XDS4502 Digital Oscilloscope- 500MHz 2 ChannelOWON XDS4502 Digital Oscilloscope- 500MHz 2 ChannelOWON XDS4502 Digital Oscilloscope- 500MHz 2 Channel

Product Information

Description:

Model XDS4502 Bandwidth 500MHz Sample Rate 5GS/s Horizontal Scale (s/div) 500ps/div - 1000s/div, step by 1 - 2 - 5 Channel 2 Display 10.4-inch LCD touch screen. Record length 400M Waveform Refresh Rate 600，000 wfms/s Vertical Sensitivity 1MΩ :1mV/div~ 10V/div；50Ω: 1mV/div ~ 1V/div Vertical ...

Brand:OWON
Seller:OPTIMA CONNECT PVT. LTD

🚚 Shipping & Returns

✓ Free shipping on this item
Weight:Approx grams
Return Policy:7
OWON XDS4502 Digital Oscilloscope- 500MHz 2 Channel
Visit the OPTIMA CONNECT PVT. LTDOWON
₹3,00,000
₹2,28,00024% OFF
10000 in stock
Model XDS4502 Bandwidth 500MHz Sample Rate 5GS/s Horizontal Scale (s/div) 500ps/div - 1000s/div, step by 1 - 2 - 5 Channel 2 Display 10.4-inch LCD touch screen. Record length 400M Waveform Refr...
Quantity:
1

📋 Specifications

ModelXDS4502
Bandwidth500MHz
Sample Rate5GS/s
Horizontal Scale (s/div)500ps/div - 1000s/div, step by 1 - 2 - 5
Channel2
Display10.4-inch LCD touch screen.
Record length400M
Waveform Refresh Rate600，000 wfms/s
Vertical Sensitivity 1MΩ1mV/div~ 10V/div；50Ω: 1mV/div ~ 1V/div
Vertical Resolution (A/D)8bits
Input impedance1MΩ±2%，in parallel with 15pF±5pF；50Ω ± 2%
DetailInput coupling DC, AC, Ground
DetailTrigger type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
Decoding Type (optional)RS232, I2C, SPI, CAN
DetailWaveform math ＋, －, *, /, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function,
Detaildigital filter (low pass, high pass, band pass, band reject)
Waveform storage100 waveforms

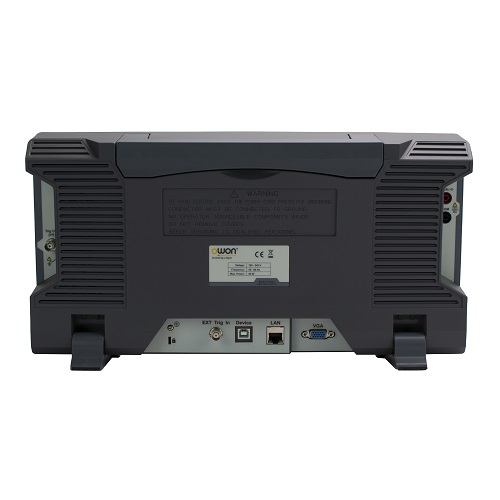

DetailCommunication interface USB Host, USB Device; Trig Out (Pass/Fail); LAN port; VGA port; EXT Trig In
DetailPrinter compatibility Pict Bridge
Dimension422 mm (W)×226 mm (H)×135 mm (D)
Weight Approx.5 kg (without accessories)
DetailArb Waveform Generator Specifications
Max Frequency Output50MHz
Sample Rate250MS/s
Channel1 channel
Vertical Resolution14bits
Amplitude Range2mVpp - 5Vpp（≦50MHz）; 2mVpp - 20Vpp（≦25MHz）
Waveform Length16K
Detail2 Year
